(61.901.AF[10]) - METER DRIVE SHAFT WITH CABLE DRIVE FOR 16/30

Запчасти Case IH 1245 (61.901.AF[10]) - METER DRIVE SHAFT WITH CABLE DRIVE FOR 16/30 (61) - METERING SYSTEM

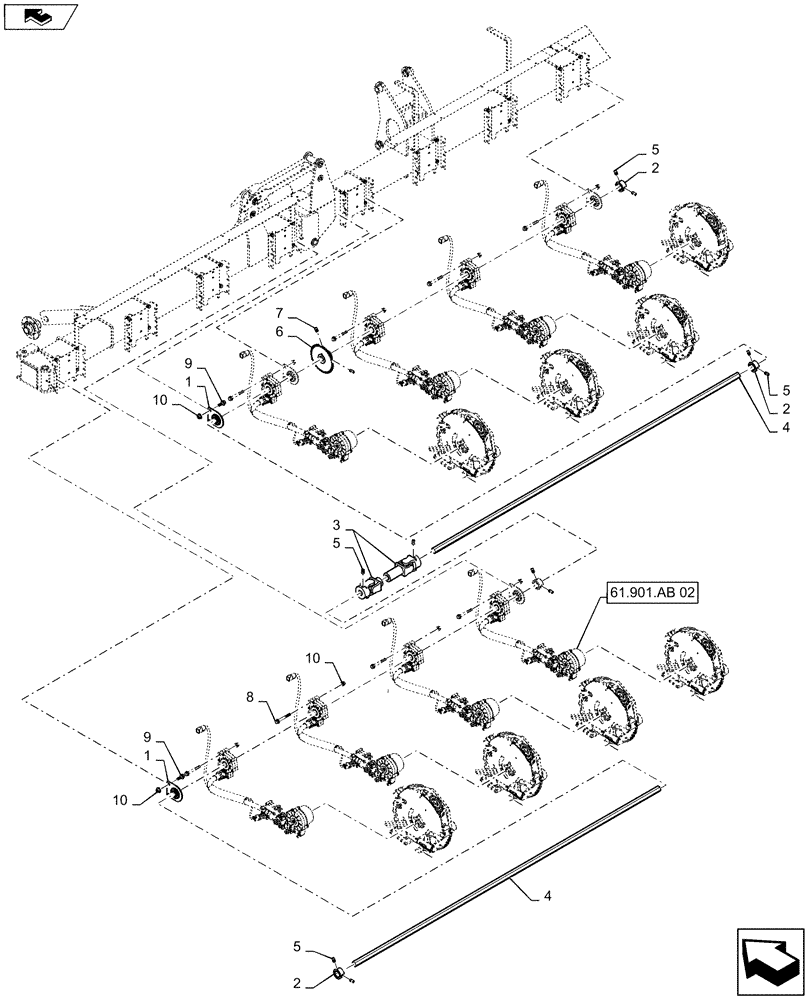

Схема запчастей Case IH 1245 - (61.901.AF[10]) - METER DRIVE SHAFT WITH CABLE DRIVE FOR 16/30 (61) - METERING SYSTEM
10
1
home
9
1
5
2
7
4
5
5
5
6
9
61.901.ab 02
10
3
10
2
2
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

102724A2

BALL BEARING,22.6mm ID

.875 Hex Bore

5шт.

2

22224

COLLAR

Lock Stop

4шт.

3

240891A1

SHAFT

Trans Input 7/8 For Sec 1 & 2

2шт.

4

87444140

DRIVE SHAFT

Telescoping

1шт.

5

87035712

SET SCREW,Hex Skt, 3/8" - 16 x 5/8"

2шт.

6

353037A1

SPROCKET

34 Tooth

1шт.

7

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

2шт.

8

84553071

FLANGE BOLT

3/8 X 3"

16шт.

9

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

10

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

20шт.
