(79.103.AA[02]) - VACUUM CONNECTORS FOR 24/20

Запчасти Case IH 1245 (79.103.AA[02]) - VACUUM CONNECTORS FOR 24/20 (79) - PLANTING

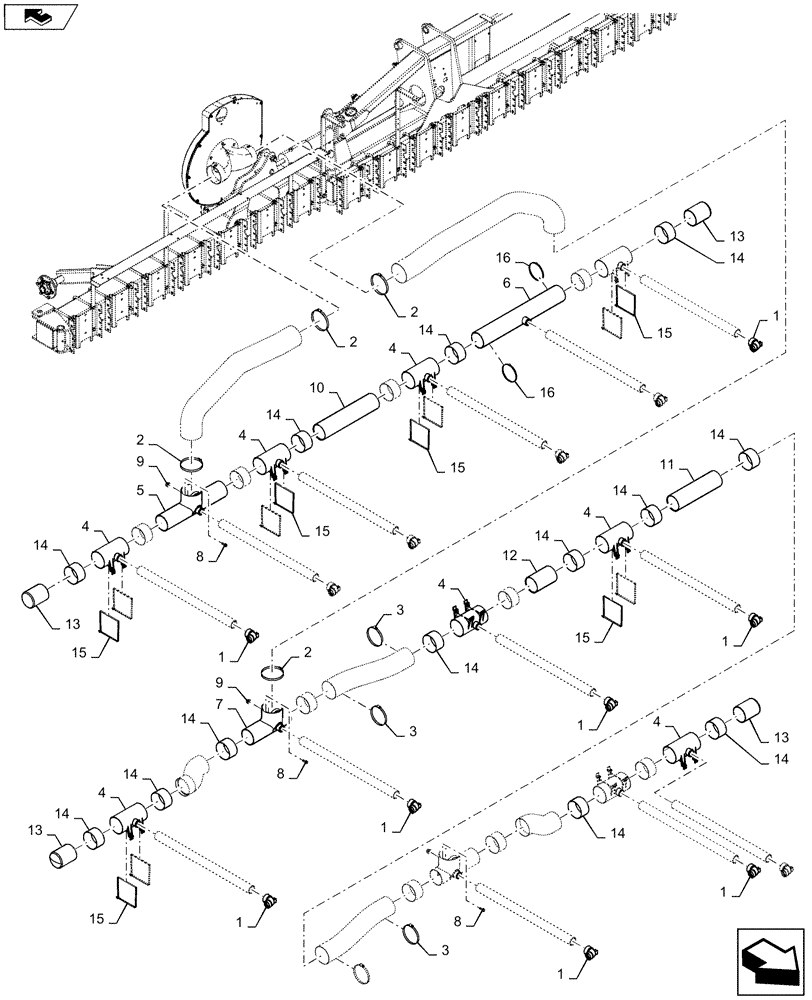

Схема запчастей Case IH 1245 - (79.103.AA[02]) - VACUUM CONNECTORS FOR 24/20 (79) - PLANTING
15
4
1
15
1
14
1
4
2
4
home
14
13
15
8
5
3
14
1
1
4
1
16
4
8
2
4
7
15
13
14
1
12
13
8
11
2
6
9
4
10
14
9
14
14
15
14
13
14
14
3
15
14
3
14
14
1
2
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84416530

90 ELBOW

50mm Vaccum

24шт.

2

84541279

CLAMP,6.12" - 7"

Worm Type

8шт.

3

84492992

HOSE CLAMP,5.12" - 6"

Worm Type

8шт.

4

446603A2

TEE

Vacuum Manifold

18шт.

5

86988117

TEE

Four Way Vertical

2шт.

6

87417935

TEE

Vacuum Manifold Long

3шт.

7

87451934

TEE

Four Way Tee Vertical

1шт.

8

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

9

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

8шт.

10

301441A1

TUBE,116.88 mm ID, 125 mm OD, 556 mm Length

2шт.

11

307971A1

TUBE,116.88 mm ID, 125 mm OD, 444 mm Length

2шт.

12

87416985

TUBE,116.88 mm ID x 125 mm OD x 200 mm L

2шт.

13

87417934

PLUG

Vacuum Manifold

8шт.

14

447175A3

SLEEVE

Air Manifold

34шт.

15

112620A1

CABLE TIE

34"

32шт.

16

386170C1

CABLE TIE,.30" x 27 1/2"

28"

4шт.
