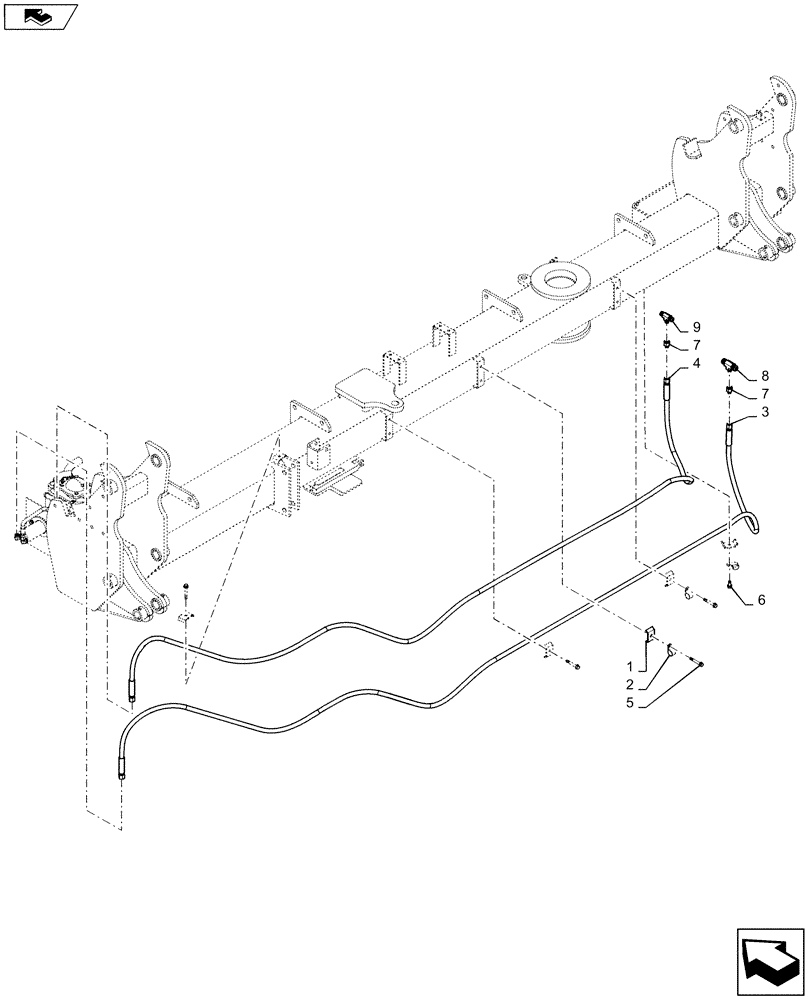

Запчасти Case IH 1245 (35.747.AE[02]) - LIQUID FERTILIZER HYDRAULICS FOR SPLIT ROW 30" 12/23 AND 12/30 (35) - HYDRAULIC SYSTEMS

1

427779A1

CLAMP

2 Hose

5шт.

2

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

3

1284256C1

HYDRAULIC HOSE,9.52 mm ID x 4955.00 mm

1шт.

4

47452703

HOSE

3/8 ID X 180"

1шт.

5

84522369

BOLT

3/8-16 X 2.5"

4шт.

6

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

7

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

2шт.

8

266315

TEE,37 Degree, 1 1/16"-12 x 3/4"-16, Br

1шт.

9

87644290

HYD CONNECTOR

5/8 X 5/8 X 1/2"

1шт.
