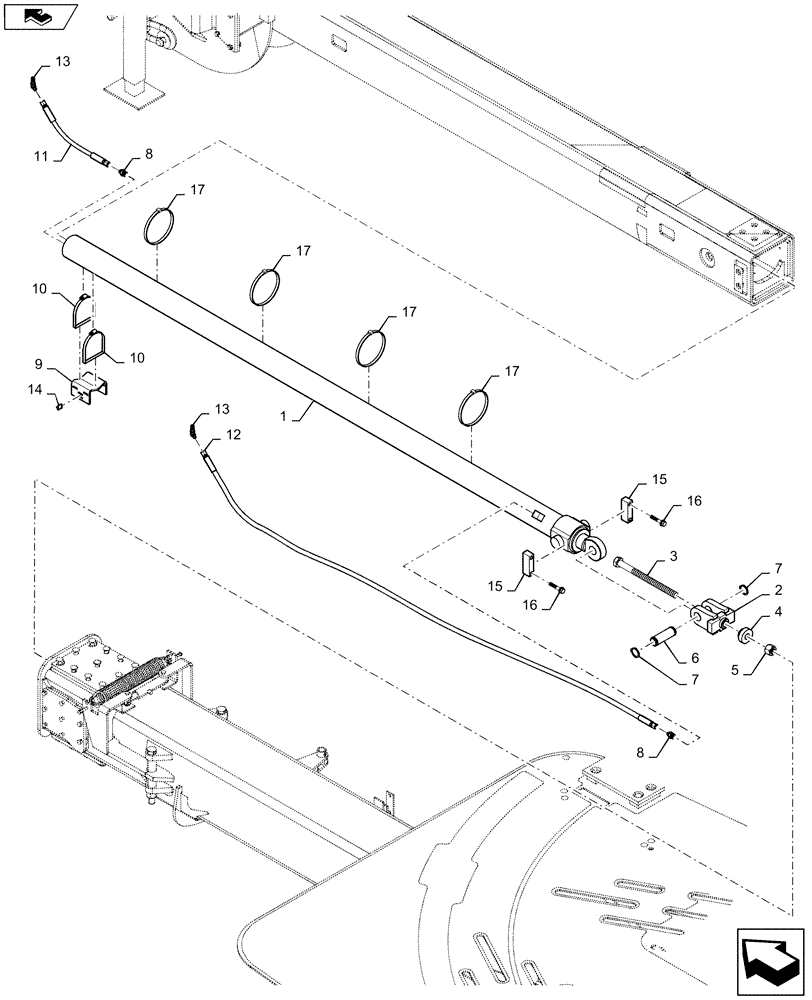

Запчасти Case IH 1245 (35.944.AA[02]) - HYDRAULIC HITCH FOR 12/30, 30"12/23 SPLIT ROW (35) - HYDRAULIC SYSTEMS

1

87533998

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 2848.1mm Stroke

3.50 X 112.13

1шт.

2

87594345

BRACKET

Mount Cylinder Clevis

1шт.

3

280576

BOLT,Hex, 1"-8 x 13", G5

1шт.

4

87594255

BUSHING

2.75 X 1.04 Painted

1шт.

5

86755

NUT,1"-8, GB

1шт.

6

87585904

PIN

37.5 X 98

1шт.

7

86632531

SNAP RING,#150, Ext

2шт.

8

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

2шт.

9

87628383

BRACKET

Saddle Cylinder Support

1шт.

10

84492992

HOSE CLAMP,5.12" - 6"

2шт.

11

1336840C1

HYDRAULIC HOSE

.375 X 25"

1шт.

12

1284252C1

HYDRAULIC HOSE

3/8 X 140 "

1шт.

13

86513096

ELBOW UNION

45 Deg 3/8"

2шт.

14

87502038

CABLE TIE

Small

1шт.

15

87593810

LOCKING BAR

Cylinder Mount

2шт.

16

84543602

4шт.

17

87502039

CABLE TIE

Medium

4шт.
