(63.100.AE[07]) - FERTILIZER DISTRIBUTION FOR 30" SPLIT ROW 16/31

Запчасти Case IH 1245 (63.100.AE[07]) - FERTILIZER DISTRIBUTION FOR 30" SPLIT ROW 16/31 (63) - CHEMICAL APPLICATORS

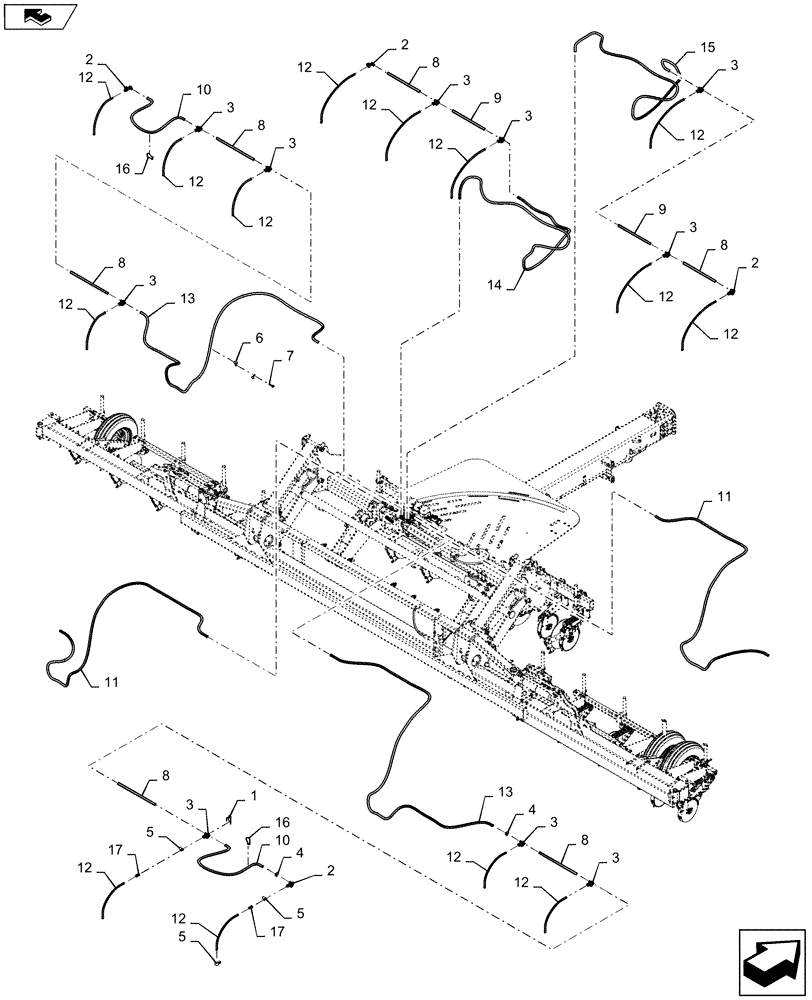

Схема запчастей Case IH 1245 - (63.100.AE[07]) - FERTILIZER DISTRIBUTION FOR 30" SPLIT ROW 16/31 (63) - CHEMICAL APPLICATORS
3
13
16
5
14
12
3
2
2
1
12
3
17
12
9
11
6
8
3
3
home
11
8
4
3
4
17
8
12
12
12
15
8
3
2
9
12
3
10
3
8
7
5
5
16
12
12
12
13
12
12
10
12
3
8
2
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

241016A1

BRACKET

Hose Support

16шт.

2

241019A1

NOZZLE

Check Valve Elbow

6шт.

3

241017A1

NOZZLE

Check Valve Tee

10шт.

4

87625624

HOSE CLAMP,14.2mm ID - 26.9mm ID, SAE #10

#10

32шт.

5

244358

HOSE CLIP,0.44" - 0.78"

32шт.

6

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

12шт.

7

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

8

241923A1

HOSE

Bulk 100' Cut To Length 838mm

6шт.

9

241923A1

HOSE

Bulk 100' Cut To Length 762mm

2шт.

10

241923A1

HOSE

Bulk 100' Cut To Length 2438mm

2шт.

11

241923A1

HOSE

Bulk 100' Cut To Length 5791mm

2шт.

12

134331C2

HOSE

Bulk 100' Cut To Length 1067mm

16шт.

13

241923A1

HOSE

Bulk 100' Cut To Length 6096mm

2шт.

14

241923A1

HOSE

Bulk 100' Cut To Length 5588mm

1шт.

15

241923A1

HOSE

Bulk 100' Cut To Length 5207mm

1шт.

16

112620A1

CABLE TIE

34"

12шт.

17

86985352

FITTING

1/2" Barbed

16шт.
