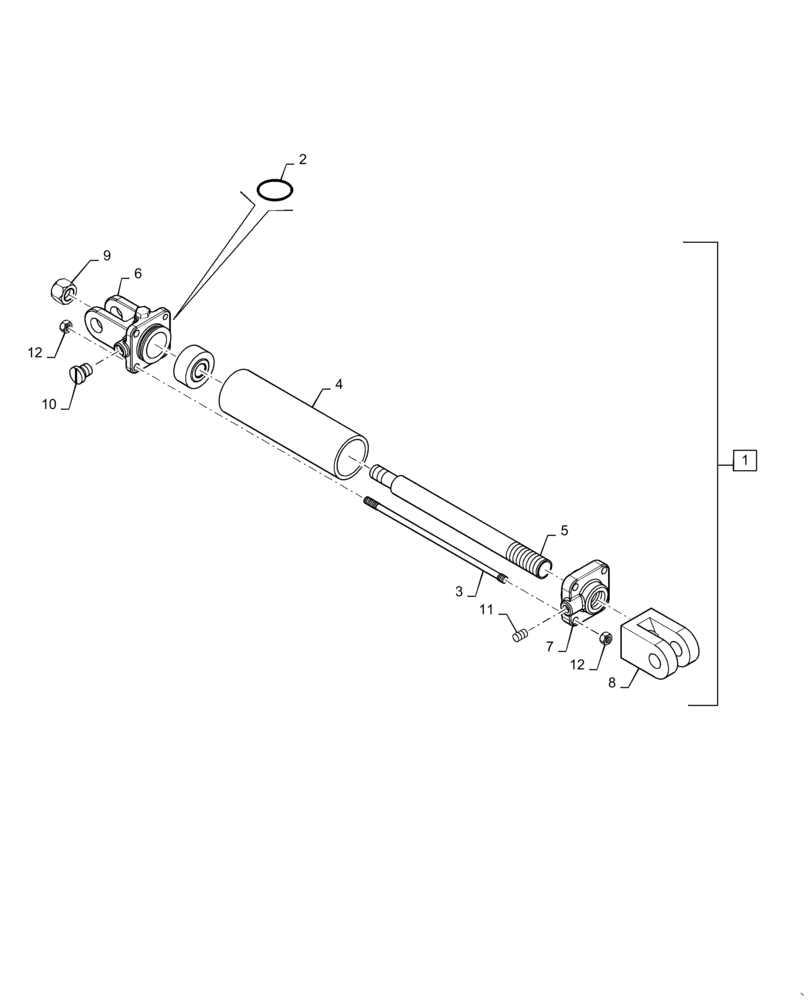

Запчасти Case IH 1245 (35.100.BI[07]) - HYDRAULIC CYLINDER 2.5 X 8 (35) - HYDRAULIC SYSTEMS

1

86991779

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

2.5 X 8 INCL 3 - 12

1шт.

2

87405834

SEAL KIT

1шт.

3

87409488

THREADED TIE-ROD

8 MON .375-16UNC 49221

1шт.

4

87409477

PISTON

CYLINDER

1шт.

5

87409456

PISTON ROD

1шт.

6

87409437

HEAD

CYLINDER BASE

1шт.

7

87409409

HEAD

CYLINDER FRONT

1шт.

8

87409387

CLEVIS,1 -1/4" - 12

1шт.

9

87021832

LOCK NUT,3/4"-16, GC

ALL MTL 3/4-16 C PHC

1шт.

10

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

1шт.

11

83-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

1шт.

12

25-106

NUT,3/8"-16, G5

8шт.
