(39.140.AF[03]) - LIQUID FERTILIZER COULTER MOUNTING FOR 30" SPLIT ROW 16/31

Запчасти Case IH 1245 (39.140.AF[03]) - LIQUID FERTILIZER COULTER MOUNTING FOR 30" SPLIT ROW 16/31 (39) - FRAMES AND BALLASTING

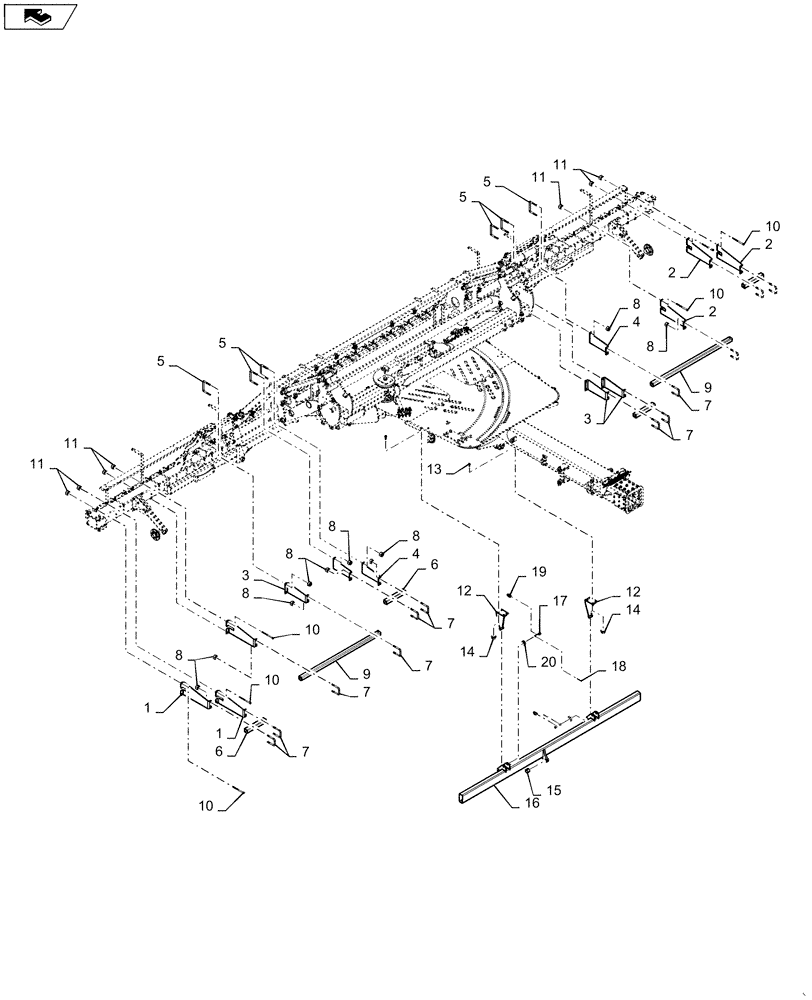

Схема запчастей Case IH 1245 - (39.140.AF[03]) - LIQUID FERTILIZER COULTER MOUNTING FOR 30" SPLIT ROW 16/31 (39) - FRAMES AND BALLASTING
14
10
10
11
12
6
7
1
8
4
5
16
17
5
6
1
2
10
8
8
8
14
12
8
5
10
2
11
8
3
7
11
7
11
home
7
20
18
5
9
7
8
7
3
4
2
13
9
15
10
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

427753A1

BRACKET

Left Fertilizer Opener 22"

3шт.

2

427755A1

BRACKET

Right Fertilizer Opener 22"

3шт.

3

441217A1

BRACKET

Left Fertilizer Opener 17"

3шт.

4

441219A1

BRACKET

Right Fertilizer Opener 17"

3шт.

5

817740C1

U-BOLT

6шт.

6

258417A1

TUBE,405 mm Length

2.5"X 2.5"

4шт.

7

1344524C1

U-BOLT

1/2 X 2-1/2 X 3-1/2

12шт.

8

280431

NUT,1/2"-13, G5

24шт.

9

1344526C1

TUBE,1702 mm Length

2шт.

10

86622984

BOLT,Hex, 5/8" - 11 x 9", Gr 5

12шт.

11

280374

NUT,Hex, 5/8" - 11, Gr 5

24шт.

12

87447077

PIVOT

Fertilizer Mount

2шт.

13

47375979

FLANGE BOLT,1/2" - 13 x 1-1/2", Gr 8

1/2-13 X 1.5"

8шт.

14

86544265

FLANGE NUT,Flg, 1/2"-13, G8

8шт.

15

87421514

TUBE ASSY.

Fertilizer Bar

1шт.

16

64601C1

BUSHING

Tension

1шт.

17

86632566

HEADED PIN,3/4" x 4 1/2", G5

2шт.

18

88182

COTTER PIN,1/4" OD x 2" L

2шт.

19

87414

LUBE NIPPLE,1/4" - 28

2шт.

20

86624163

WASHER,0.81" ID x 1.5" OD x 0.22" Thk

2шт.
