(61.901.AF[03]) - SEED METER, CABLE DRIVEN SHAFT, CENTER FOR 12 ROW

Запчасти Case IH 1255 (61.901.AF[03]) - SEED METER, CABLE DRIVEN SHAFT, CENTER FOR 12 ROW (61) - METERING SYSTEM

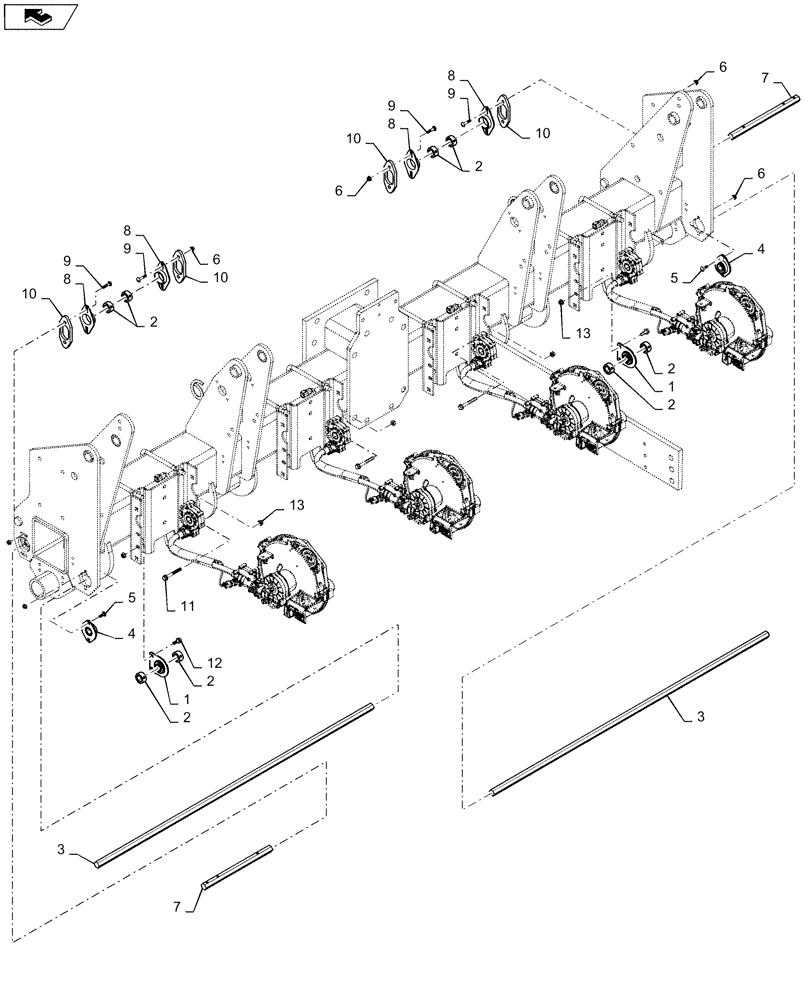

Схема запчастей Case IH 1255 - (61.901.AF[03]) - SEED METER, CABLE DRIVEN SHAFT, CENTER FOR 12 ROW (61) - METERING SYSTEM
6
5
4
2
2
11
home
8
2
13
1
2
10
8
8
6
9
2
12
13
9
8
4
6
7
3
10
1
9
7
2
6
10
10
5
3
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

102724A2

BALL BEARING,22.6mm ID

Hanger

2шт.

2

22224

COLLAR

Lock Stop

8шт.

3

87640587

SHAFT

Hex .875" x 1435mm

2шт.

4

134158C92

BALL BEARING,22.5mm ID

2шт.

5

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

4шт.

6

86521605

FLANGE NUT,5/16"-18, Cl 5

12шт.

7

87557041

SHAFT

Hex Cross Over

2шт.

8

87673199

BALL BEARING,22.25mm ID

4шт.

9

280623

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/2", Gr 5

8шт.

10

87725549

SPACER

Bearing Painted Red

4шт.

11

84553071

FLANGE BOLT

3/8 x 3" Gr 5

8шт.

12

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

13

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

12шт.

14

84523394

KEYWAY

Collar Stop Lock

16шт.
