(61.901.AF[04]) - SEED METER, CABLE DRIVEN SHAFT, OUTER RIGHT FOR 12 ROW

Запчасти Case IH 1255 (61.901.AF[04]) - SEED METER, CABLE DRIVEN SHAFT, OUTER RIGHT FOR 12 ROW (61) - METERING SYSTEM

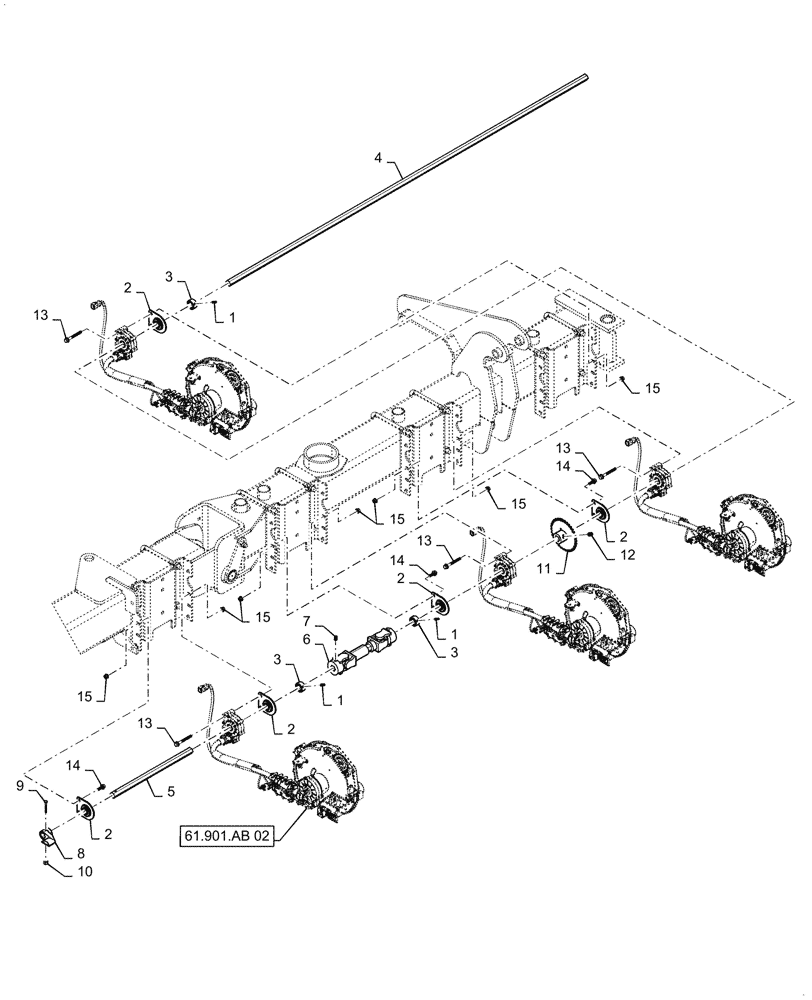

Схема запчастей Case IH 1255 - (61.901.AF[04]) - SEED METER, CABLE DRIVEN SHAFT, OUTER RIGHT FOR 12 ROW (61) - METERING SYSTEM
61.901.ab 02
5
1
15
3
2
13
2
14
9
2
13
14
1
11
1
2
6
15
15
10
8
3
3
2
14
7
12
13
4
15
13
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84523394

KEYWAY

Set Screw 1/4 - 28 x 3/8 Cup

6шт.

2

102724A2

BALL BEARING,22.6mm ID

.875 Hex Bore

5шт.

3

22224

COLLAR

Stop Lock 7/8 Hex

3шт.

4

87623391

SHAFT

Hex .875" x 2026mm

1шт.

5

87589426

SHAFT

Hex .875 x 17.4

1шт.

6

87444140

DRIVE SHAFT

Coupling Telescoping

1шт.

7

87035712

SET SCREW,Hex Skt, 3/8" - 16 x 5/8"

2шт.

8

87539852

COUPLING

Cross Over Drive

1шт.

9

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

10

20356

NUT,1/4"-20, GB

1шт.

11

353037A1

SPROCKET

34 Tooth Assy

1шт.

12

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

2шт.

13

84553071

FLANGE BOLT

3/8 x 3 Gr 5

8шт.

14

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

15

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

14шт.
