(63.100.AE[01]) - LIQUID FERTILIZER DISTRIBUTION FOR 12 ROW

Запчасти Case IH 1255 (63.100.AE[01]) - LIQUID FERTILIZER DISTRIBUTION FOR 12 ROW (63) - CHEMICAL APPLICATORS

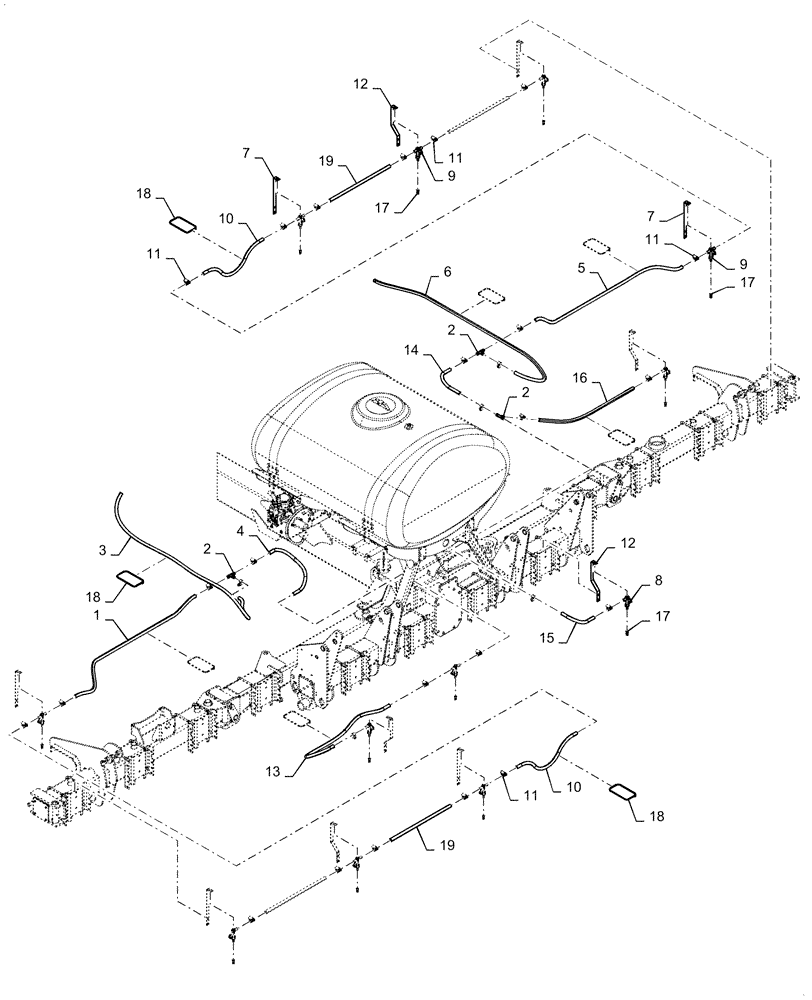

Схема запчастей Case IH 1255 - (63.100.AE[01]) - LIQUID FERTILIZER DISTRIBUTION FOR 12 ROW (63) - CHEMICAL APPLICATORS
12
1
9
2
14
17
12
18
16
2
5
18
7
11
11
10
9
13
11
6
15
19
8
11
4
18
17
10
7
17
19
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

241923A1

HOSE

3/4" ID x 1810 Long

1шт.

2

87669667

FITTING,3/4" Hose Barb Tee

3шт.

3

241923A1

HOSE

3/4" ID x 2500 Long

1шт.

4

241923A1

HOSE

3/4" ID x 762 Long

1шт.

5

241923A1

HOSE

3/4" ID x 1685 Long

1шт.

6

241923A1

HOSE

3/4" ID x 2500 Long

1шт.

7

87673671

BRACKET

Fertilizer Check valve

6шт.

8

241019A1

NOZZLE

Fitting Valve Elbow

5шт.

9

241017A1

NOZZLE

Fitting Valve Tee

7шт.

10

241923A1

HOSE

3/4" EPDM

2шт.

11

87625624

HOSE CLAMP,14.2mm ID - 26.9mm ID, SAE #10

28шт.

12

87737640

BRACKET

Fertilizer, Painted Red

6шт.

13

241923A1

HOSE

3/4" EPDM

1шт.

14

241923A1

HOSE

3/4" ID x 375mm Long

1шт.

15

241923A1

HOSE

3/4" ID x 375mm Long

1шт.

16

241923A1

HOSE

3/4" ID x 1050mm Long

1шт.

17

86985352

FITTING

1/2" Barbed

12шт.

18

87502038

CABLE TIE

Small

8шт.

19

241923A1

HOSE

3/4" EPDM

4шт.
