(35.948.AD[03]) - HYDRAULICS CENTER SECTION FOR 12 ROW 30" SPACING

Запчасти Case IH 1255 (35.948.AD[03]) - HYDRAULICS CENTER SECTION FOR 12 ROW 30" SPACING (35) - HYDRAULIC SYSTEMS

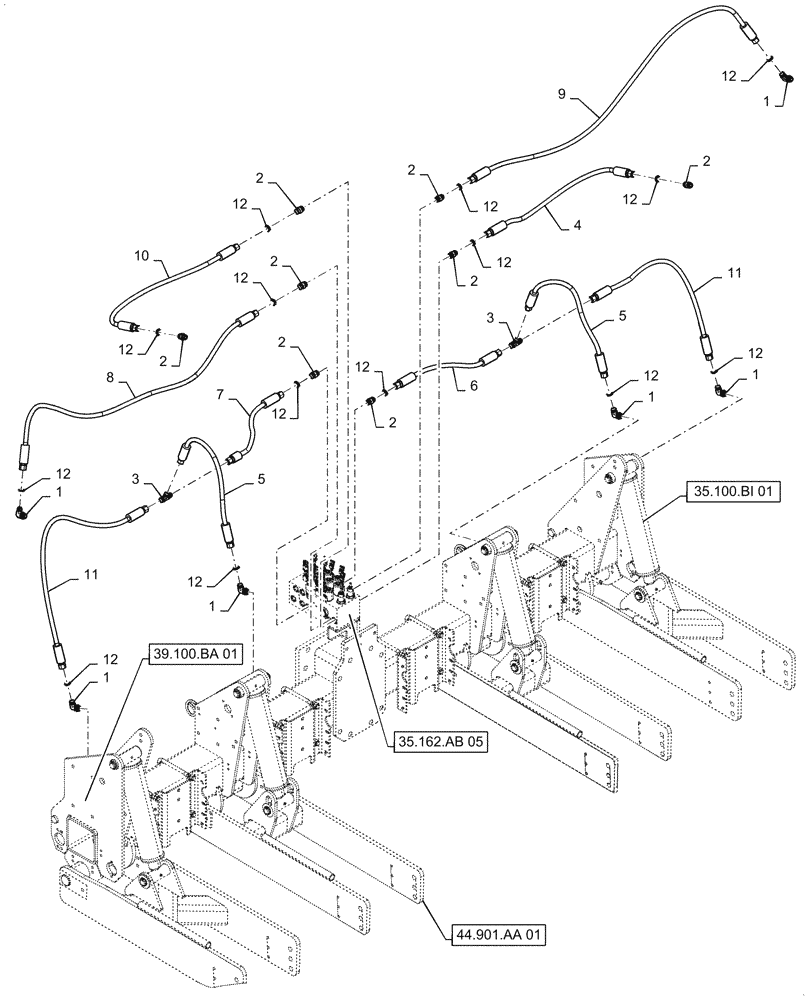

Схема запчастей Case IH 1255 - (35.948.AD[03]) - HYDRAULICS CENTER SECTION FOR 12 ROW 30" SPACING (35) - HYDRAULIC SYSTEMS
39.100.ba 01
1
12
12
12
12
1
12
2
1
12
12
11
4
2
12
12
3
3
2
12
12
5
1
2
1
6
11
2
2
9
8
12
12
12
2
10
7
5
1
2
35.162.ab 05
35.100.bi 01
44.901.aa 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 12

6шт.

2

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 12

8шт.

3

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

4

47409355

HOSE

from Hydraulic Valve Lift Fold Assy to Hydraulic Cylinder (12.5mm ID x 840mm Long)

1шт.

5

47409358

HOSE

from hydraulic Cylinder to Tee (12.5mm ID x 430mm Long)

2шт.

6

47409352

HOSE

from Hydraulic Valve Lift Fold Assy to Tee (12.5mm ID x 585mm Long)

1шт.

7

47409367

HOSE

from Hydraulic Valve Lift Fold Assy to Tee (12.5mm ID x 735mm Long)

1шт.

8

47409380

HOSE

from Hydraulic Valve Lift Fold Assy to Hydraulic Cylinder (12.5mm ID x 1780mm Long)

1шт.

9

47409360

HOSE

from Hydraulic Valve Lift Fold Assy to Hydraulic Cylinder (12.5mm ID x 1650mm Long)

1шт.

10

47409374

HOSE

from hydraulic Cylinder to Tee (12.5mm ID x 940mm Long)

1шт.

11

47409363

HOSE

from hydraulic Cylinder to Tee (12.5mm ID x 1395mm Long)

2шт.

12

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
