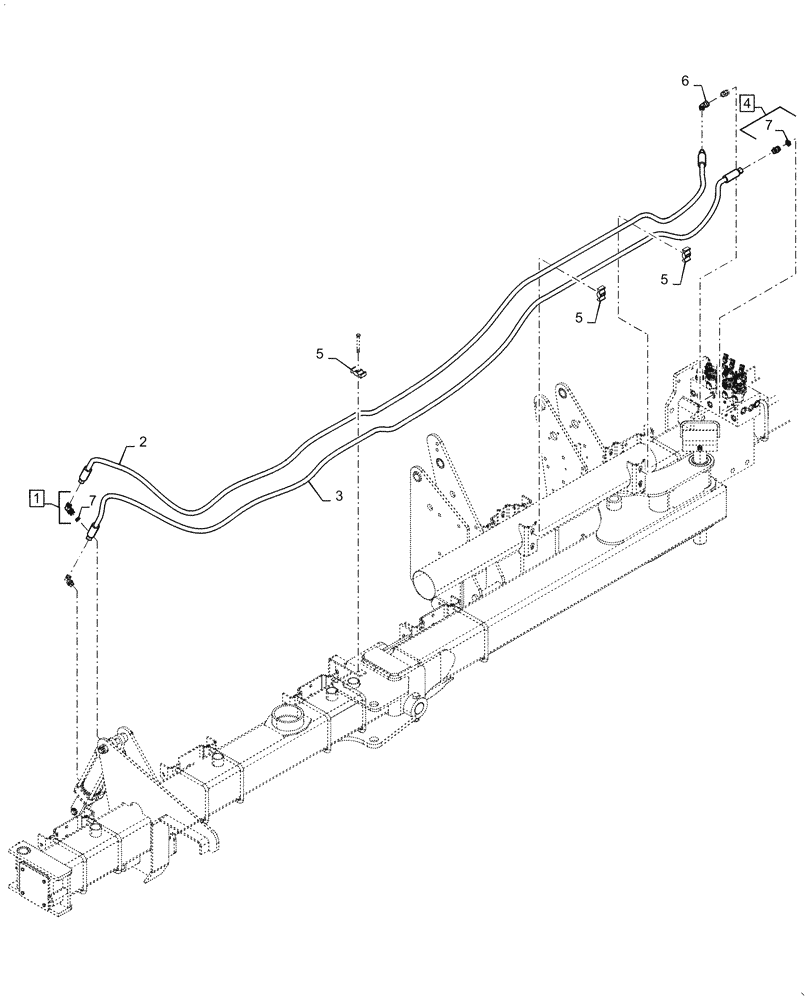

Запчасти Case IH 1255 (35.948.AD[04]) - HYDRAULIC LINES RIGHT WING FOR 12 ROW 30" SPACING (35) - HYDRAULIC SYSTEMS

1

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 7

2шт.

2

47409383

HOSE

from Hydraulic Cylinder to Hydraulic Lift Fold Valve Assy (12.5mm ID x 4320mm Long)

1шт.

3

47409387

HOSE

from Hydraulic Cylinder to Hydraulic Lift Fold Valve Assy (12.5mm ID x 4570mm Long)

1шт.

4

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 7

2шт.

5

87482623

CLAMP

Large

3шт.

6

248992

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

7

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
