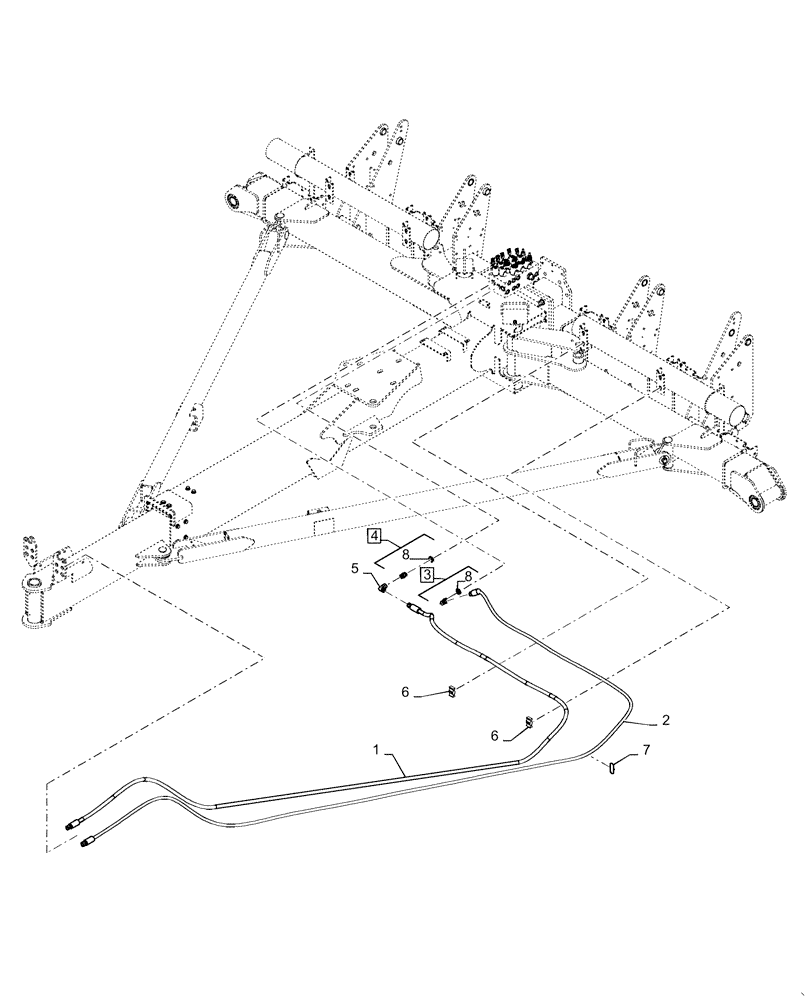

Запчасти Case IH 1255 (35.948.AD[05]) - HYDRAULIC LINES SUPPLY AND RETURN FOR 12 ROW 30" SPACING (35) - HYDRAULIC SYSTEMS

1

47446540

HOSE

from Hydraulic Lift Fold Valve Assy to Inner Hitch Bracket (16mm ID x 6250mm Long)

1шт.

2

47446540

HOSE

from Hydraulic Lift Fold Valve Assy to Inner Hitch Bracket (16mm ID x 6250mm Long)

1шт.

3

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Incl 8

1шт.

4

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

Incl 8

1шт.

5

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

6

87482623

CLAMP

Large

2шт.

7

87502038

CABLE TIE

Small

1шт.

8

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.
