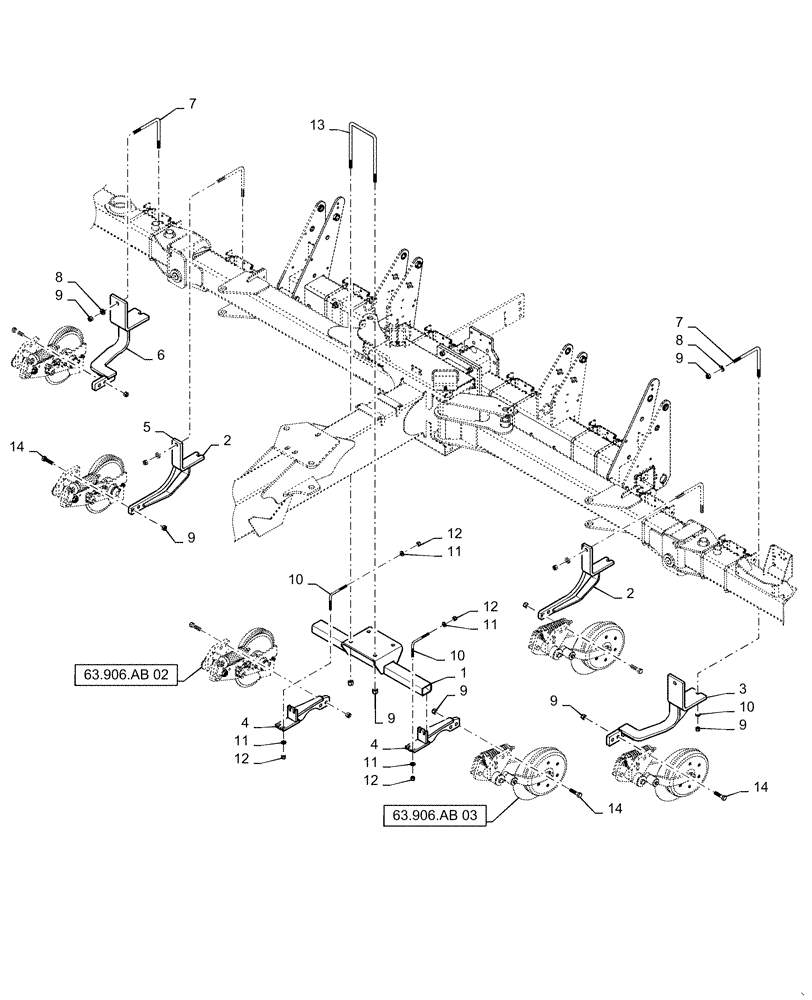

Запчасти Case IH 1255 (63.906.AB[01]) - FERTILIZER COULTER MOUNTING FOR 16 ROW (63) - CHEMICAL APPLICATORS

1

87652896

MOUNT

Coulter

1шт.

2

84249368

MOUNT

Coulter Left Painted Black

5шт.

3

84249959

MOUNT

Coulter Left Viper Painted Black

1шт.

4

87687571

MOUNT

Coulter Painted Black

2шт.

5

84249366

MOUNT

Coulter Right Painted Black

5шт.

6

84249962

MOUNT

Coulter Right Viper Painted Black

1шт.

7

87670751

BOLT

L-Bolt 3/4 -9.5 mm

12шт.

8

86624163

WASHER,0.81" ID x 1.5" OD x 0.22" Thk

24шт.

9

9626598

NUT,3/4"-10, GB

56шт.

10

87600201

BOLT

1/2"

4шт.

11

84158486

WASHER,0.53" ID x 1.25" OD x 0.19" Thk

8шт.

12

9636698

NUT,1/2"-13, GB

8шт.

13

87671598

BOLT

3/4" x 13.75"

2шт.

14

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

28шт.
