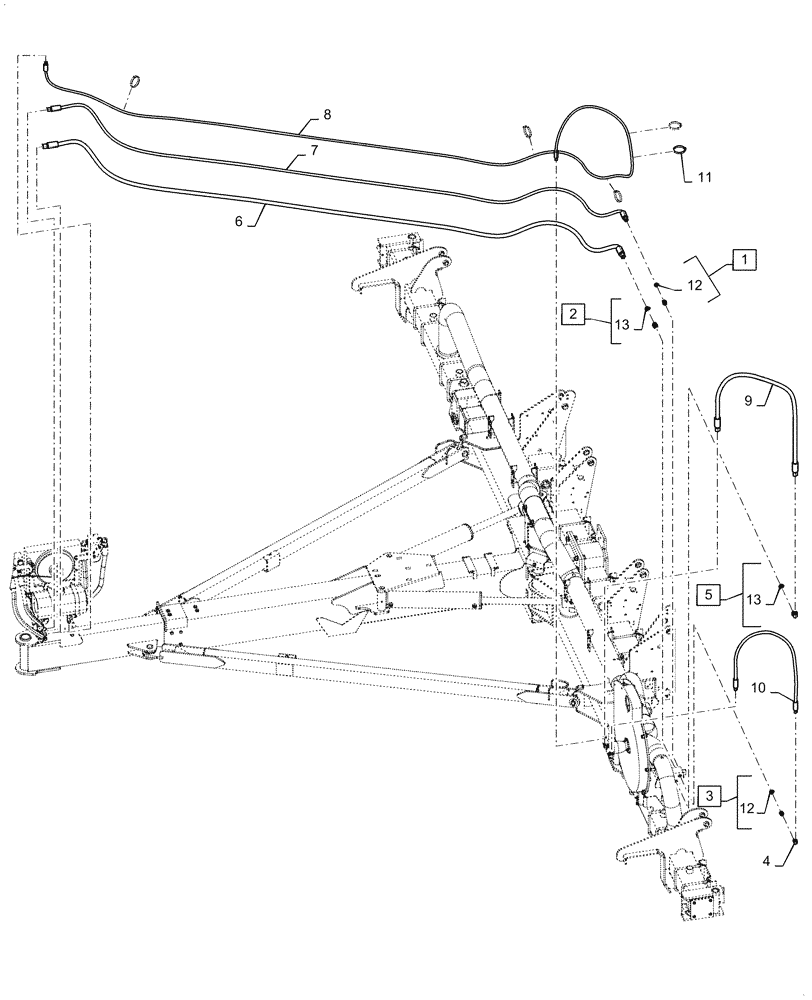

Запчасти Case IH 1255 (35.300.AB[03]) - HYDRAULIC VACUUM HOSES 16 ROW EARLY RISER 2 POINT HITCH (35) - HYDRAULIC SYSTEMS

1

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

Incl 12

1шт.

2

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 13

1шт.

3

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

Incl 12

1шт.

4

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

5

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 13

1шт.

6

87655958

HYDRAULIC HOSE

from Valve Block to Fan Pressure and Return Port VR on Valve (19 x 6050mm Long)

1шт.

7

47452684

HOSE

from Valve Block to Fan Pre4ssure Port V on Valve (16 x 6050mm Long)

1шт.

8

435691A1

HYDRAULIC HOSE

from Valve Block to Case Drain Hose Connects to Case Drain Port on Fan Motor (3/8 x 300" Long)

1шт.

9

87463224

HYDRAULIC HOSE

from Valve Port MR to Fan Motor Port C (.75 x 55" Long)

1шт.

10

1301963C2

HYDRAULIC HOSE,12.7mm ID x 1270mm L

from Valve Port M to Fan Motor Port D (.5 x 50" Long)

1шт.

11

87502039

CABLE TIE

Medium

8шт.

12

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

13

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
