(35.780.AD[05]) - BULK FILL, HYDRAULIC HOSE, 2 POINT 12 AND 16 ROW

Запчасти Case IH 1255 (35.780.AD[05]) - BULK FILL, HYDRAULIC HOSE, 2 POINT 12 AND 16 ROW (35) - HYDRAULIC SYSTEMS

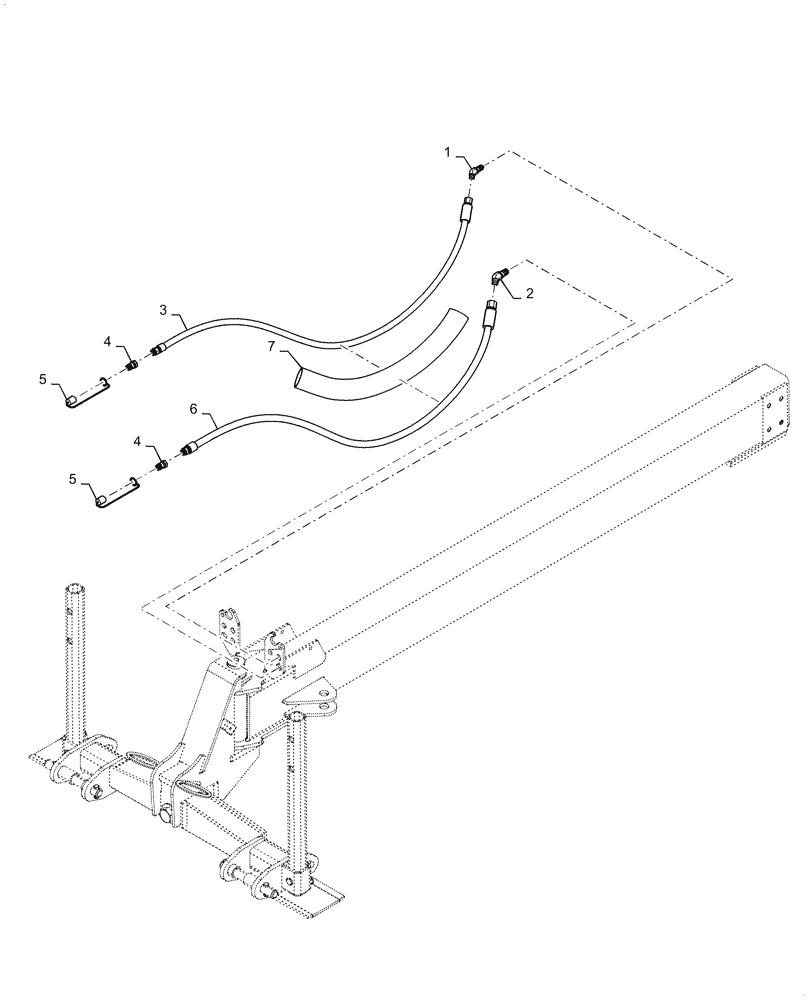

Схема запчастей Case IH 1255 - (35.780.AD[05]) - BULK FILL, HYDRAULIC HOSE, 2 POINT 12 AND 16 ROW (35) - HYDRAULIC SYSTEMS
6
1
4
5
5
4
7
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86513098

45 ELBOW,45 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

2

86513099

FITTING

Elbow, 45° 3/4

1шт.

3

47446539

HOSE

from Hydraulic Sleeve to Tractor (16mm ID x 2083mm Long

1шт.

4

1272399C2

QUICK MALE COUPLING

2шт.

5

333719A1

CAP

Quick Coupler, Yellow

2шт.

6

47456341

HOSE

from Hydraulic Sleeve to Tractor (19mm ID x 2040mm Long)

1шт.

7

87106154

SLEEVE

1шт.
