(61.901.AI[04]) - SEED METER, CHAIN DRIVEN SHAFT, CENTER FOR 12 AND 16 ROW

Запчасти Case IH 1255 (61.901.AI[04]) - SEED METER, CHAIN DRIVEN SHAFT, CENTER FOR 12 AND 16 ROW (61) - METERING SYSTEM

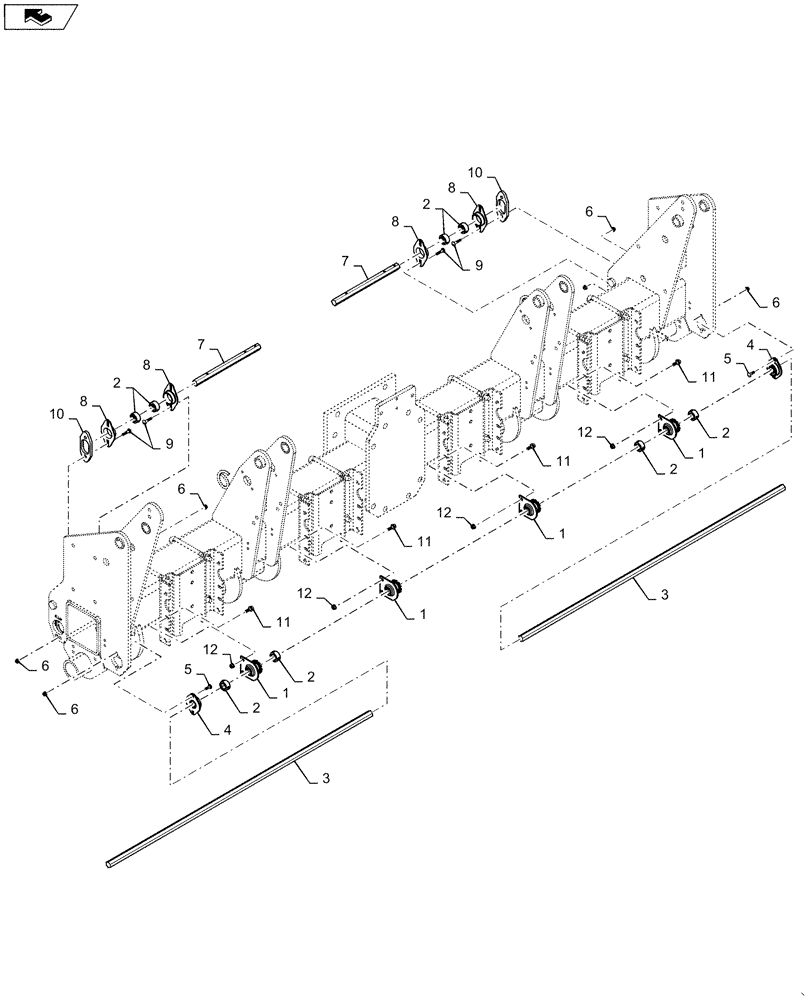

Схема запчастей Case IH 1255 - (61.901.AI[04]) - SEED METER, CHAIN DRIVEN SHAFT, CENTER FOR 12 AND 16 ROW (61) - METERING SYSTEM
11
2
10
2
8
8
4
12
7
9
1
2
6
8
1
6
11
3
12
3
12
11
2
6
9
7
6
1
5
4
11
12
1
10
6
5
2
2
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

413712A1

BEARING ASSY,1.90625" OD x 1.875"

W/ Bearing

4шт.

2

22224

COLLAR

Stop Lock

8шт.

3

87640587

SHAFT

Hex .875 x 1435

2шт.

4

134158C92

BALL BEARING,22.5mm ID

2шт.

5

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

4шт.

6

86521605

FLANGE NUT,5/16"-18, Cl 5

12шт.

7

87557041

SHAFT

Hex Cross Over

2шт.

8

87673199

BALL BEARING,22.25mm ID

4шт.

9

280623

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/2", Gr 5

8шт.

10

87725549

SPACER

Bearing Painted Red

4шт.

11

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

12

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

8шт.

13

84523394

KEYWAY

Set Screw 1/4 - 28 x 3/8 Cup

16шт.
