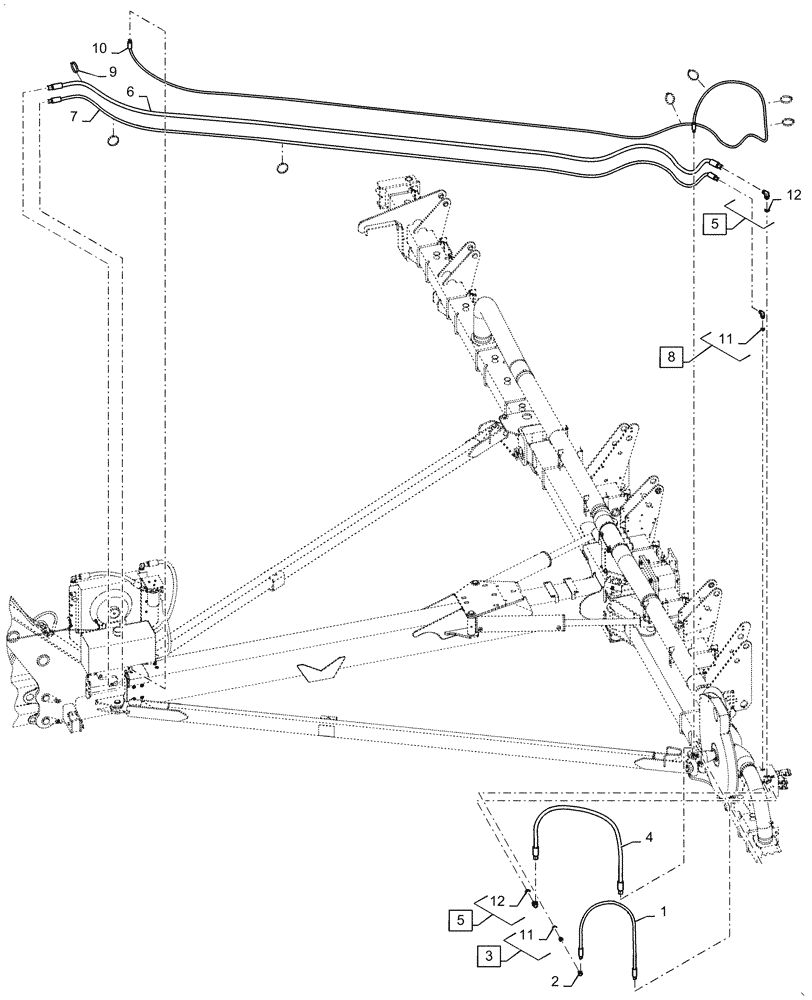

Запчасти Case IH 1255 (35.780.AD[02]) - HYDRAULIC VACUUM FAN HOSES 16 ROW ADVANCE FARMING SYSTEM DBH (35) - HYDRAULIC SYSTEMS

1

1301963C2

HYDRAULIC HOSE,12.7mm ID x 1270mm L

from Port M1 of Multi Valve to Fan Motor Port D

1шт.

2

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

3

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

Incl 11

1шт.

4

87463224

HYDRAULIC HOSE

from Port M2 of Multi Valve to Fan Motor Port C (.75 x 55" Long)

1шт.

5

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 12

2шт.

6

87655958

HYDRAULIC HOSE

from Port T of Multi Valve to Hitch Mounting Bracket (19 x 6050mm Long)

1шт.

7

47452684

HOSE

from Port P of Multi Valve to Hitch Mounting Bracket (16 x 6050mm Long)

1шт.

8

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Incl 11

1шт.

9

87502039

CABLE TIE

Medium

8шт.

10

435691A1

HYDRAULIC HOSE

from Fan Motor Drain Port toHydraulic Tank (3/8 X 300" Long)

1шт.

11

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
