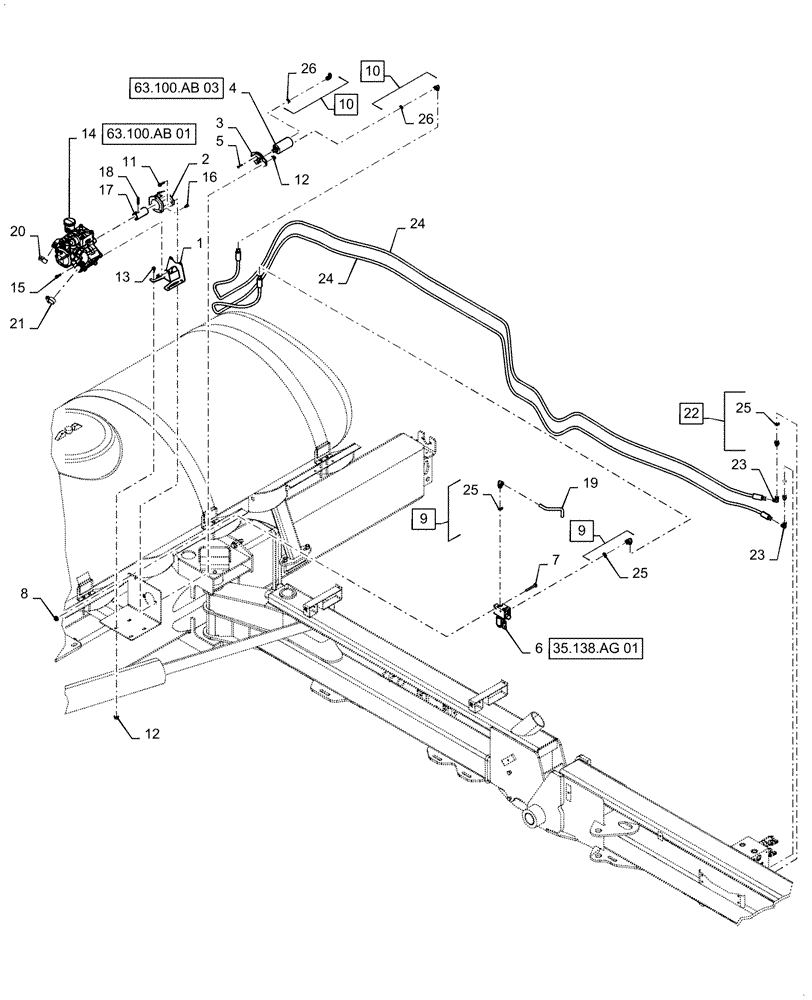

Запчасти Case IH 1255 (63.100.AB[01]) - FERTILIZER PUMP FOR 24 ROW (63) - CHEMICAL APPLICATORS

1

408358A1

BASE

Pump Mount

1шт.

2

86990284

FLANGE

Motor Mounting

1шт.

3

400300A1

FLANGE

Mounting

1шт.

4

284797A1

MOTOR

Meter Drive

1шт.

4

284797A1R

REMAN-HYD MOTOR

1шт.

4

284797A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

5

87659

HEX SOC SCREW,FLAT, 1/4" - 28 x 3/4"

3шт.

6

419865A1

CONTROL VALVE

Fertilizer

1шт.

7

280566

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

2шт.

8

86624020

FLANGE NUT,Flg, 1/4"-20.G5

2шт.

9

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

Incl 25

2шт.

10

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 26

2шт.

11

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

12

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

6шт.

13

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

14

87504661

PUMP

30 GPM Diaphragm

1шт.

15

300442

HEX SOC SCREW,M10 x 30mm, Cl 8.8

1шт.

16

86632600

HEX SOC SCREW,M10 x 20mm, Cl 8.8

2шт.

17

400299A2

COUPLING

Pump to Motor

1шт.

18

87023162

PIN,9.53mm OD x 44.45mm L

2шт.

19

1251872C2

HYDRAULIC HOSE

from Valve to Motor, 3/8 x 23"

1шт.

20

87625624

HOSE CLAMP,14.2mm ID - 26.9mm ID, SAE #10

1шт.

21

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

1шт.

22

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

Incl 25

2шт.

23

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

2шт.

24

47447560

HOSE

from Hydraulic Meter Drive Motor to Valve (10mm ID x 6350mm Long)

2шт.

25

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

26

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
