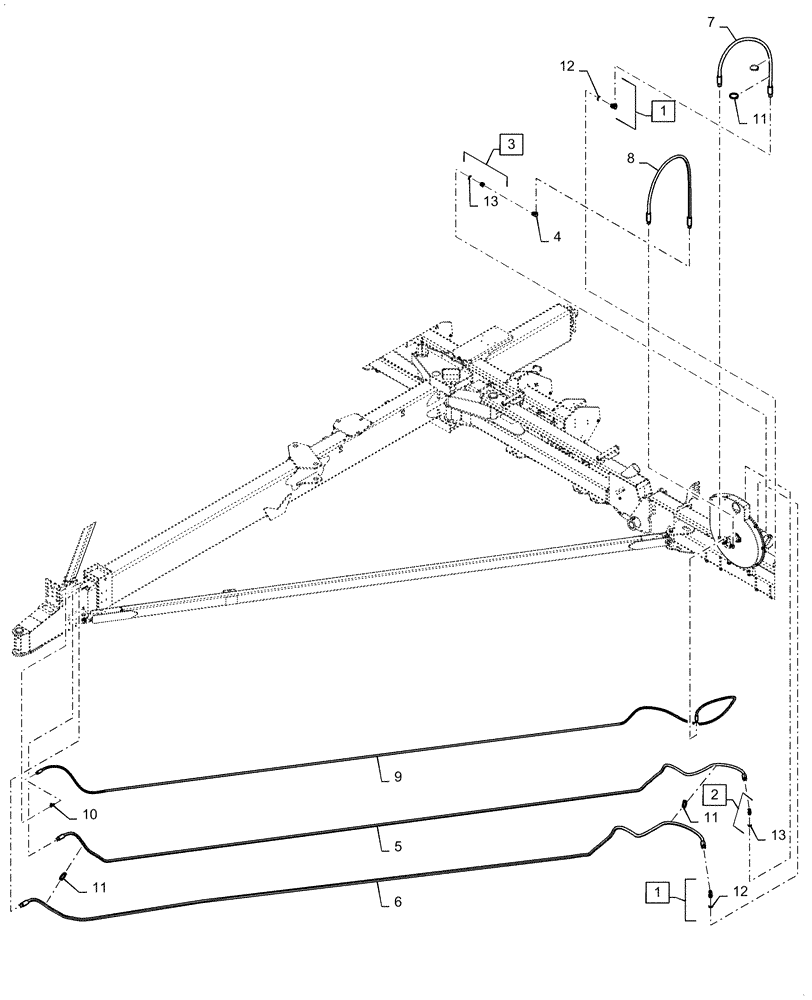

Запчасти Case IH 1255 (35.744.AC[04]) - LEFT SIDE, HYDRAULIC HOSES, MULTI VALVE DIRECT DRIVE 2 POINT HITCH (35) - HYDRAULIC SYSTEMS

1

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 12

2шт.

2

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Incl 13

1шт.

3

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

Incl 13

1шт.

4

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

5

47452267

HOSE

from Port P1 of Multi Valve to Hitch Mounting Bracket (16 ID x 8380mm Long)

1шт.

6

87589823

HYDRAULIC HOSE,19mm ID x 8250mm L, SAE 100R17

from Port T1 of Multi Valve to Hitch Mounting Bracket

1шт.

7

87463224

HYDRAULIC HOSE

from Port B2 of Multi Valve to Fan Motor Port C (19 ID x 8250mm Long)

1шт.

8

1301963C2

HYDRAULIC HOSE,12.7mm ID x 1270mm L

from Port B1 of Multi Valve to Fan Motor Port D

1шт.

9

1284300C1

HYDRAULIC HOSE

from Fan Motor Drain Port Hitch Mounting Bracket (3/8" x 380" Long)

1шт.

10

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

11

87502039

CABLE TIE

Medium

8шт.

12

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

13

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
