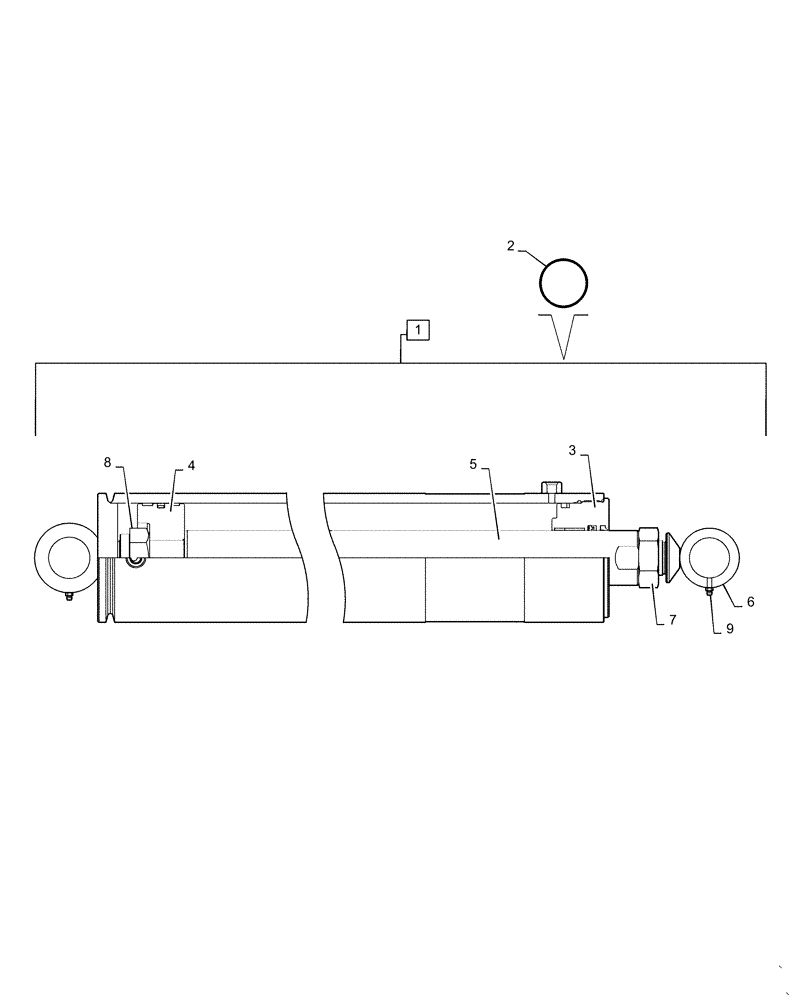

Запчасти Case IH 1255 (35.100.BI[08]) - HYDRAULIC CYLINDER 5.5" (35) - HYDRAULIC SYSTEMS

1

87462245

HYDRAULIC CYLINDER,Double Acting, 69.85mm Rod, 1045.72mm Stroke

Assy, Fold, 5.5" Incl 3 - 9

1шт.

2

87506113

SEAL KIT

Hydraulic Fold Cylinder

1шт.

3

87506109

HEAD

Front Cylinder

1шт.

4

87506110

PISTON

Fold Cylinder

1шт.

5

87506111

ROD

Fold Cylinder

1шт.

6

87506112

EYE

Rod, Adjustable

1шт.

7

425-1528

JAM NUT,Jam, 1 3/4"-12, G5, Hvy

1шт.

8

87396626

THIN NUT

PT Heavy Non Met 1-3/4-12 C PLN

1шт.

9

219-87

LUBE NIPPLE,1/4" - 28 NPTF

Fitting, Self Tapping

1шт.
