(35.162.AB[01]) - 24 ROW 30" SPACING WING WHEEL CYLINDERS

Запчасти Case IH 1255 (35.162.AB[01]) - 24 ROW 30" SPACING WING WHEEL CYLINDERS (35) - HYDRAULIC SYSTEMS

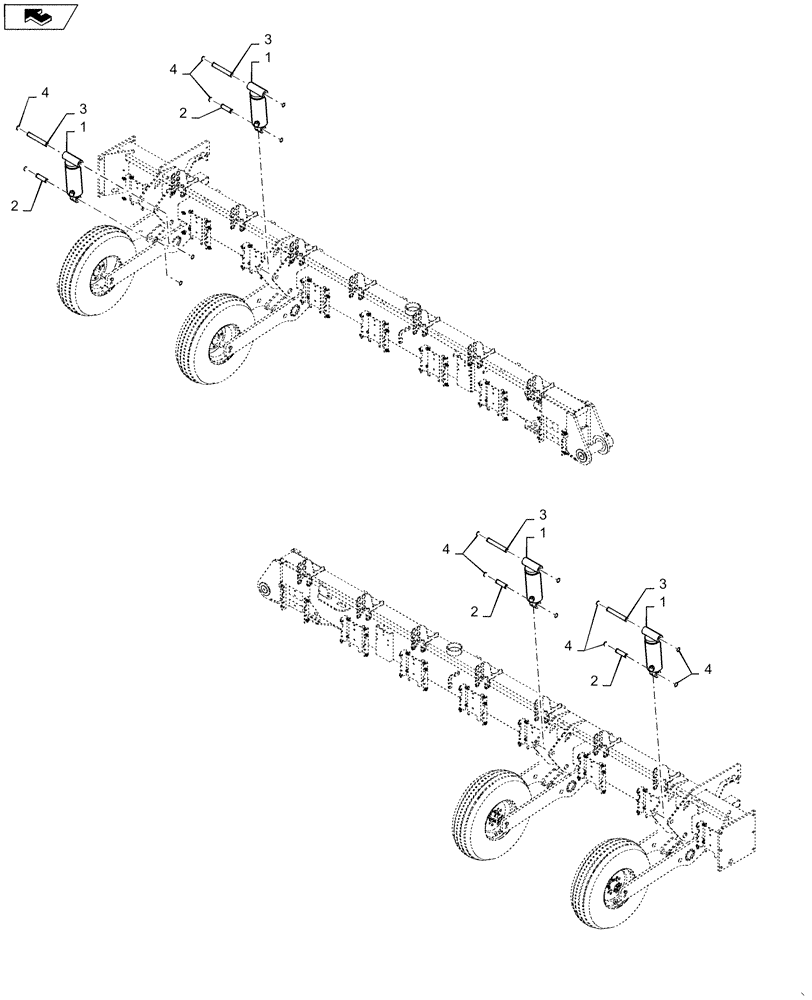

Схема запчастей Case IH 1255 - (35.162.AB[01]) - 24 ROW 30" SPACING WING WHEEL CYLINDERS (35) - HYDRAULIC SYSTEMS
4
4
3
2
1
1
3
3
4
4
2
2
1
3
4
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87462743

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 175.26mm Stroke

4 x 7 1/4

4шт.

2

87503056

PIN

Cylinder Anchor, 31.75 x 104

4шт.

3

87503057

PIN

Cylinder Anchor, 31.75 x 215

4шт.

4

84488092

CIRCLIP

1.156

16шт.
