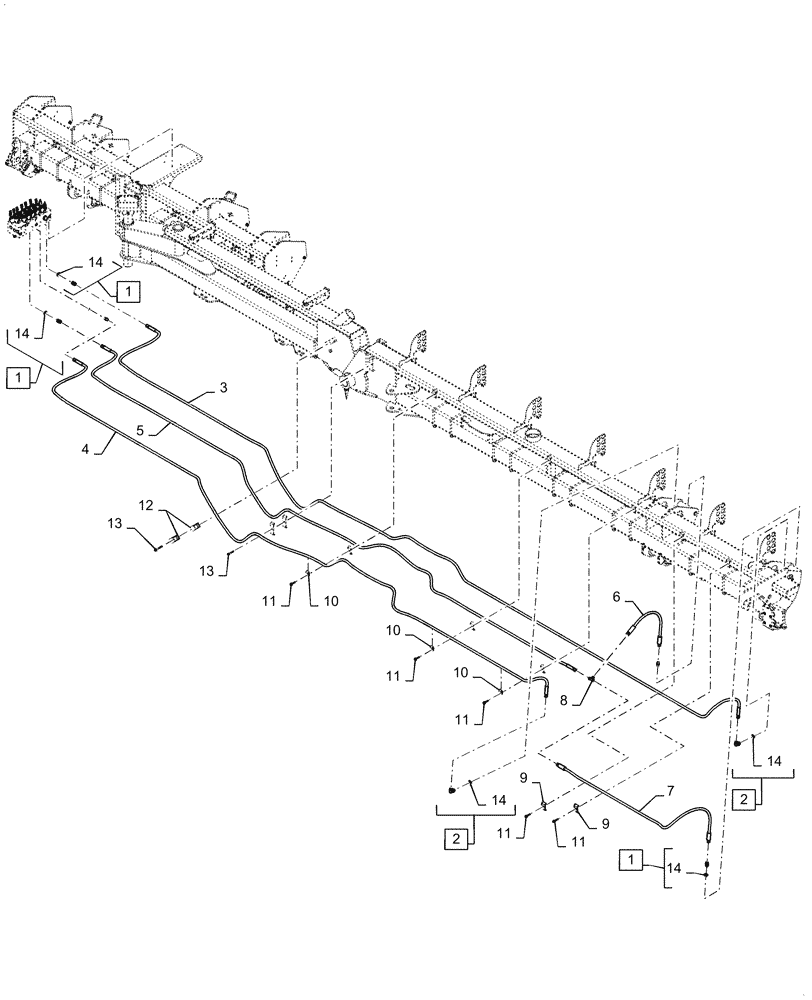

Запчасти Case IH 1255 (35.948.AD[01]) - HYDRAULIC LINES LEFT WING FOR 24 ROW 30" SPACING (35) - HYDRAULIC SYSTEMS

1

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 14

5шт.

2

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 14

2шт.

3

47413474

HOSE

from Hydraulic Valve Lift Fold Assy to LH Outer Wing Wheel Cylinder Base End (12.5mm ID x 9905mm Long)

1шт.

4

47413468

HOSE

from Hydraulic Valve Lift Fold Assy to LH Inner Wing Wheel Cylinder Base End (12.5mm ID x 8380mm Long)

1шт.

5

47413463

HOSE

from Hydraulic Valve Lift Fold Assy to Tee Wing Wheel Common Rod End (12.5mm ID x 7875mm Long)

1шт.

6

47409440

HOSE

from LH Inner Wing Wheel Cylinder to Tee (12.5mm ID x 1090mm Long)

1шт.

7

47413477

HOSE

from LH Outer Wing Wheel Cylinder to Tee (12.5mm ID x 2285mm Long)

1шт.

8

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

9

427781A1

HOSE CLAMP

2 Hose

5шт.

10

86598598

CLAMP,19mm, Insulated, 13.5mm Bolt Hole - P Type

3шт.

11

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

5шт.

12

87545575

HOSE CLAMP

4шт.

13

84553071

FLANGE BOLT

3/8 x 3" Gr 5

2шт.

14

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
