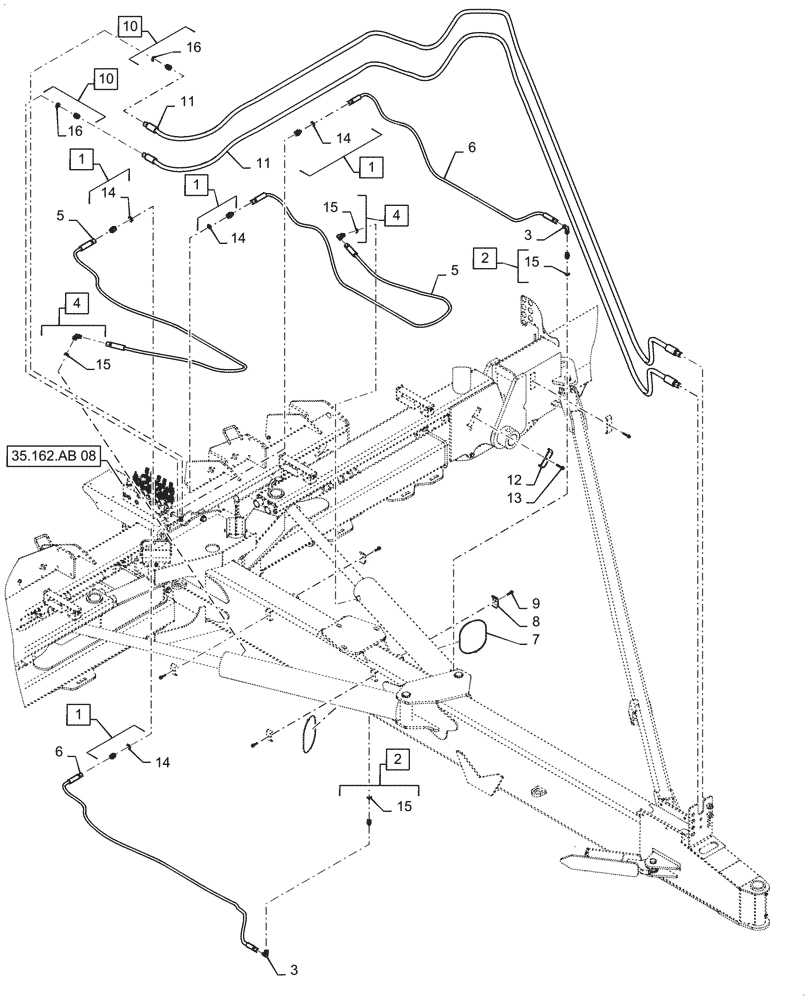

Запчасти Case IH 1255 (35.948.AD[04]) - HYDRAULICS LIFT AND FOLD FOR 24 ROW 30" SPACING (35) - HYDRAULIC SYSTEMS

1

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

Incl 14

4шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 15

2шт.

3

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

2шт.

4

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 15

2шт.

5

47447569

HOSE

from Hydraulic Valve Lift and Fold Assy to Right Fold Cylinder Rod End (3.5mm ID x 3810mm Long)

2шт.

6

47447568

HOSE

from Hydraulic Valve Lift and Fold Assy to Right Fold Cylinder Base End (9.5 mm ID x 2665mm Long)

2шт.

7

291207C1

CLAMP

Large

2шт.

8

427781A1

HOSE CLAMP

2 Hose

4шт.

9

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

4шт.

10

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

Incl 16

2шт.

11

47446575

HYDRAULIC HOSE

from Hydraulic Valve Lift & Fold Assy to Bulkhead (16 x 11580mm Long)

2шт.

12

87545575

HOSE CLAMP

2шт.

13

86533830

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

14

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

16

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
