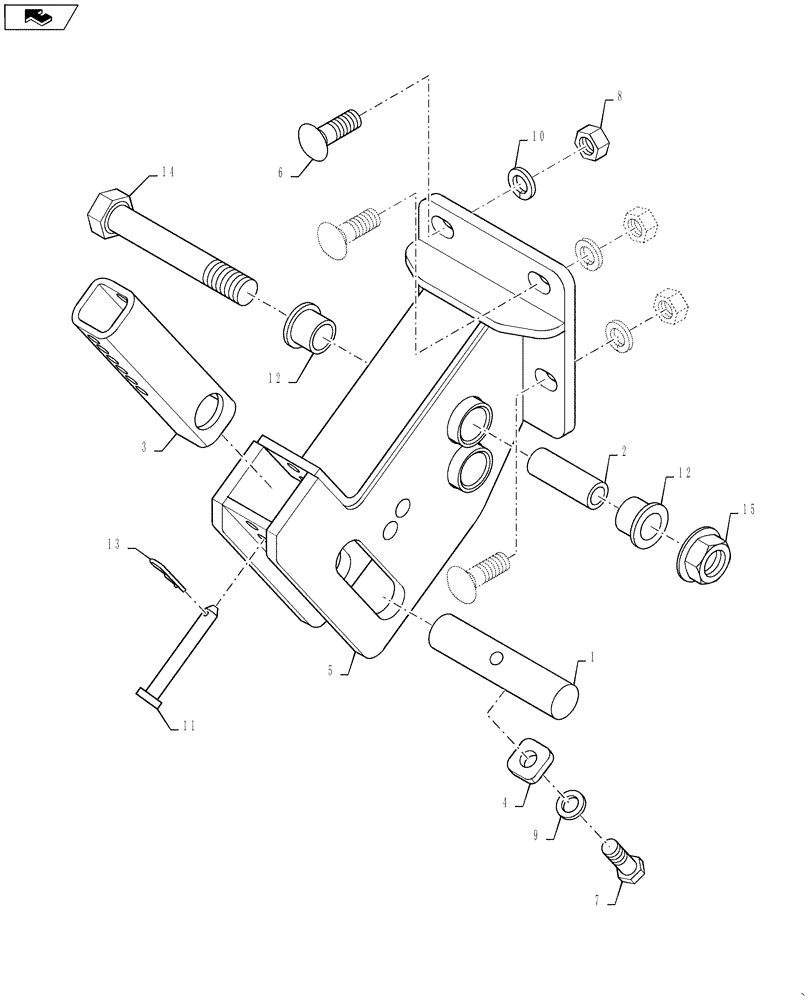

Запчасти Case IH 1625 (77.105.AG[06]) - ROW CLEANER UNIT MOUNT ASSEMBLY (77) - SEEDING/PLANTING

1

73359121

UNION

MOUNT ROUND TUBE

1шт.

2

73359067

PIPE

ROW CLEANER PIVOT PIPE

1шт.

3

73359120

TUBE

ADJUSTMENT TUBE

1шт.

4

73359090

SPACER

1шт.

5

73359122

SUPPORT

1шт.

6

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

4шт.

7

9627887

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5, Full Thd

1шт.

8

9803187

NUT,1/2"-13, G8

4шт.

9

81547

LOCK WASHER,7/16"

1шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

11

73358528

CLEVIS PIN

1шт.

12

73358011

BUSHING

PARALLEL ARM PIVOT

2шт.

13

73358531

COTTER PIN

1шт.

14

88576

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

1шт.

15

73358490

NUT

1шт.
