(36.100.AB[05]) - PNEUMATIC LINES DOWN FORCE RESIDUE MANAGER, 12 ROW FRONT FOLD

Запчасти Case IH 2150 (36.100.AB[05]) - PNEUMATIC LINES DOWN FORCE RESIDUE MANAGER, 12 ROW FRONT FOLD (36) - PNEUMATIC SYSTEM

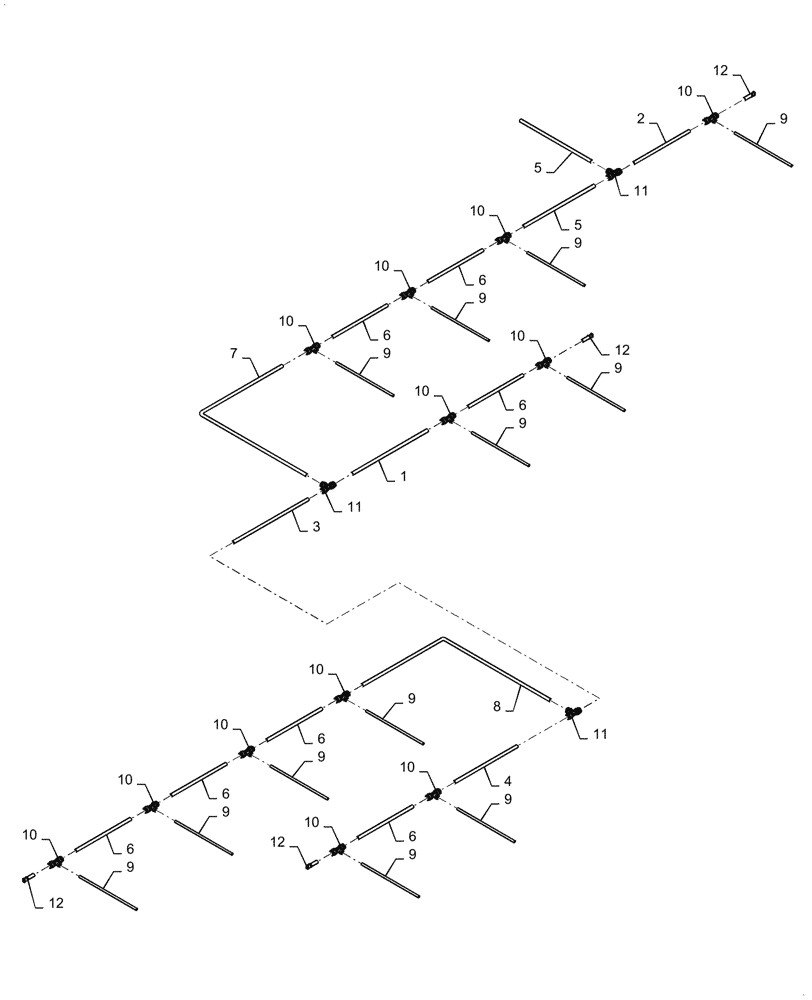

Схема запчастей Case IH 2150 - (36.100.AB[05]) - PNEUMATIC LINES DOWN FORCE RESIDUE MANAGER, 12 ROW FRONT FOLD (36) - PNEUMATIC SYSTEM
9
9
11
5
9
6
6
10
7
12
2
12
9
9
10
9
5
10
11
10
3
10
12
6
9
10
6
9
9
4
10
6
9
10
8
9
12
10
9
10
10
10
6
1
11
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47619235

TUBE

3/8 Bulk Roll Cut To Length 140mm Red

1шт.

2

47619235

TUBE

3/8 Bulk Roll Cut To Length 200mm Red

1шт.

3

47619235

TUBE

3/8 Bulk Roll Cut To Length 320mm Red

1шт.

4

47619235

TUBE

3/8 Bulk Roll Cut To Length 380mm Red

1шт.

5

47619235

TUBE

3/8 Bulk Roll Cut To Length 500mm Red

2шт.

6

47619235

TUBE

3/8 Bulk Roll Cut To Length 740mm Red

7шт.

7

47619235

TUBE

3/8 Bulk Roll Cut To Length 2140mm Red

1шт.

8

47619235

TUBE

3/8 Bulk Roll Cut To Length 2600mm Red

1шт.

9

87675607

HOSE, BULK,4.318 mm ID x 6.35 mm OD x 76200 mm L

1/4 Bulk Roll Cut To Length 1320mm Red

12шт.

10

47633933

HYD CONNECTOR

Tee Fitting 3/8 x 3/8 x 1/4"

12шт.

11

47633932

HYD CONNECTOR

Tee Fitting 3/8 x 3/8 x 3/8"

3шт.

12

47705231

PLUG

Plastic 3/8"

4шт.
