(36.100.AB[06]) - PNEUMATIC LINES UP FORCE RESIDUE MANAGER, 12 ROW FRONT FOLD

Запчасти Case IH 2150 (36.100.AB[06]) - PNEUMATIC LINES UP FORCE RESIDUE MANAGER, 12 ROW FRONT FOLD (36) - PNEUMATIC SYSTEM

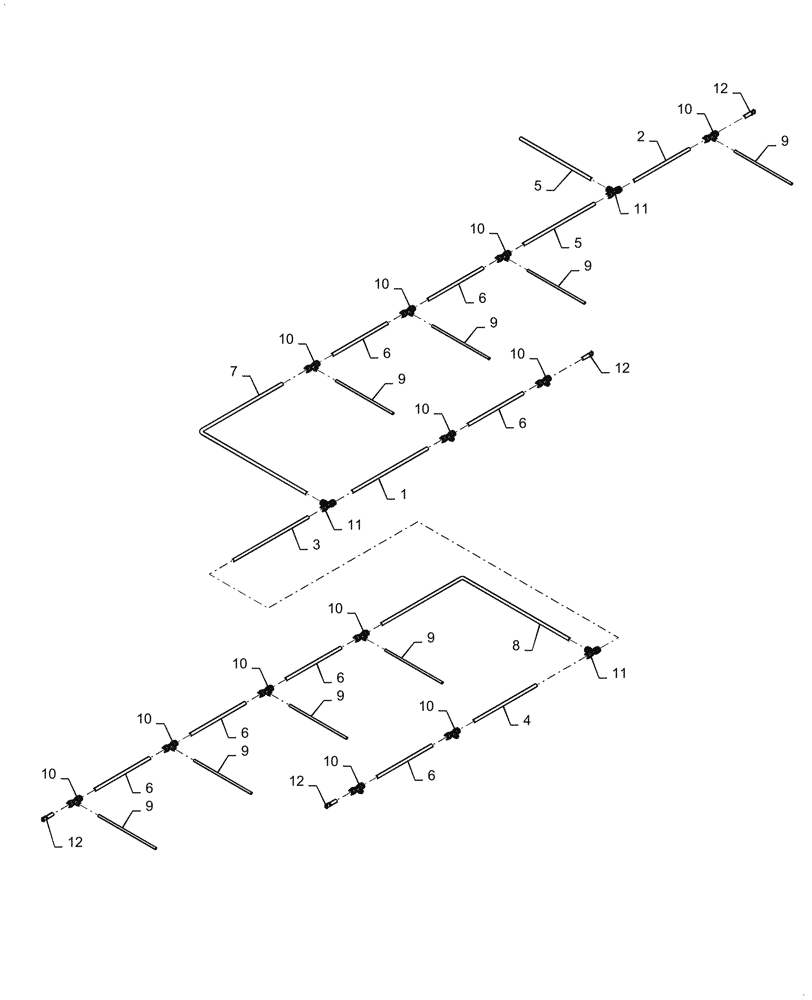

Схема запчастей Case IH 2150 - (36.100.AB[06]) - PNEUMATIC LINES UP FORCE RESIDUE MANAGER, 12 ROW FRONT FOLD (36) - PNEUMATIC SYSTEM
9
5
6
9
12
10
1
2
10
12
9
10
10
9
12
10
11
4
3
12
10
9
6
5
6
6
10
10
6
7
6
10
9
9
10
10
10
9
11
6
11
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47619236

TUBE

3/8 Bulk Roll Cut To Length 140mm Silver

1шт.

2

47619236

TUBE

3/8 Bulk Roll Cut To Length 200mm Silver

1шт.

3

47619236

TUBE

3/8 Bulk Roll Cut To Length 320mm Silver

1шт.

4

47619236

TUBE

3/8 Bulk Roll Cut To Length 380mm Silver

1шт.

5

47619236

TUBE

3/8 Bulk Roll Cut To Length 500mm Silver

2шт.

6

47619236

TUBE

3/8 Bulk Roll Cut To Length 740mm Silver

7шт.

7

47619236

TUBE

3/8 Bulk Roll Cut To Length 2140mm Silver

1шт.

8

47619236

TUBE

3/8 Bulk Roll Cut To Length 2600mm Silver

1шт.

9

47595486

TUBE

1/4 Bulk Roll Cut To Length 1190mm Silver

1шт.

10

47633933

HYD CONNECTOR

3/8 x 3/8 x 1/4" Tee

12шт.

11

47633932

HYD CONNECTOR

3/8 x 3/8 x 3/8" Tee

3шт.

12

47705231

PLUG

3/8" Plastic

4шт.
