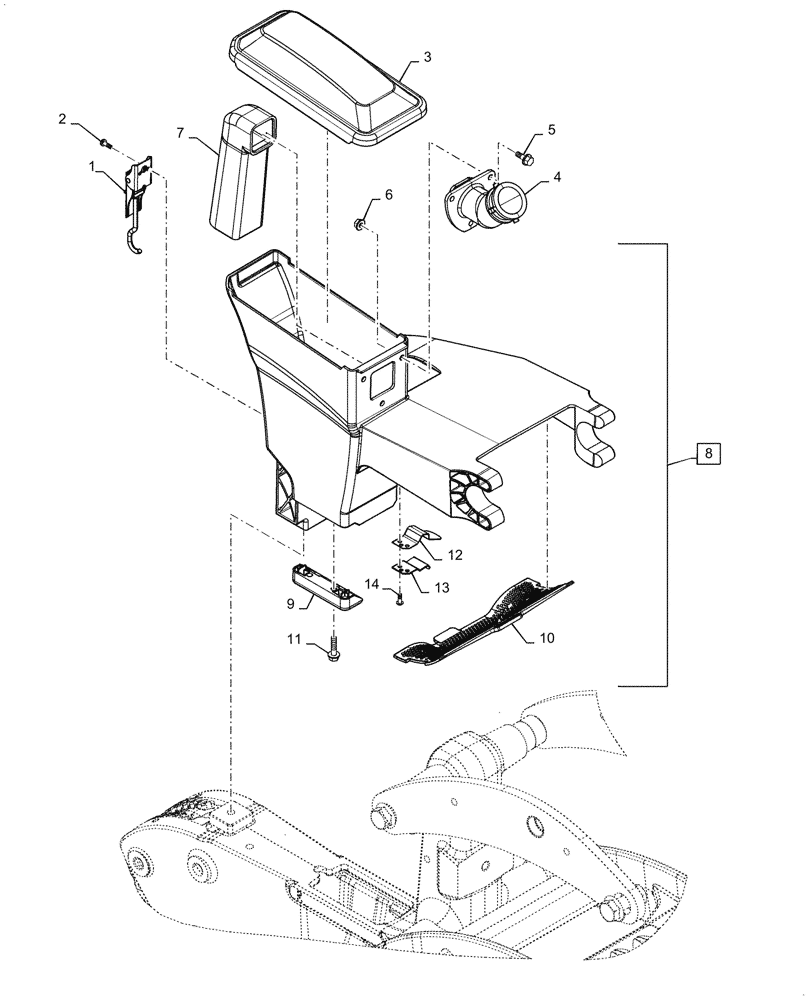

Запчасти Case IH 2150 (77.150.AC[02]) - MINI HOPPER (77) - SEEDING/PLANTING

1

47881004

LATCH

Mini Hopper

1шт.

2

47741703

SCREW

8-32 x 1/2"

3шт.

3

47626548

LID

Mini Hopper

1шт.

4

84315775

QUICK MALE COUPLING

Elbow

1шт.

5

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

3шт.

6

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

3шт.

7

84339808

ELBOW

Seed Deceleration

1шт.

8

47719459

Mini Hopper Incl 9-14

HOPPER

1шт.

9

47613350

HINGE

Seed Meter

1шт.

10

47678754

SCREEN

Hopper Intake

1шт.

11

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

12

47706019

SPRING

Upper Meter Latch

1шт.

13

47706017

SPRING

Lower Meter Latch

1шт.

14

86632692

SELF-TAP SCREW,Phillips Drive, Pan HD, #8 - 18 x 1/2"

2шт.
