(37.120.AO[01]) - DRAFT TUBES, 12 / 16 ROW

Запчасти Case IH 2150 (37.120.AO[01]) - DRAFT TUBES, 12 / 16 ROW (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

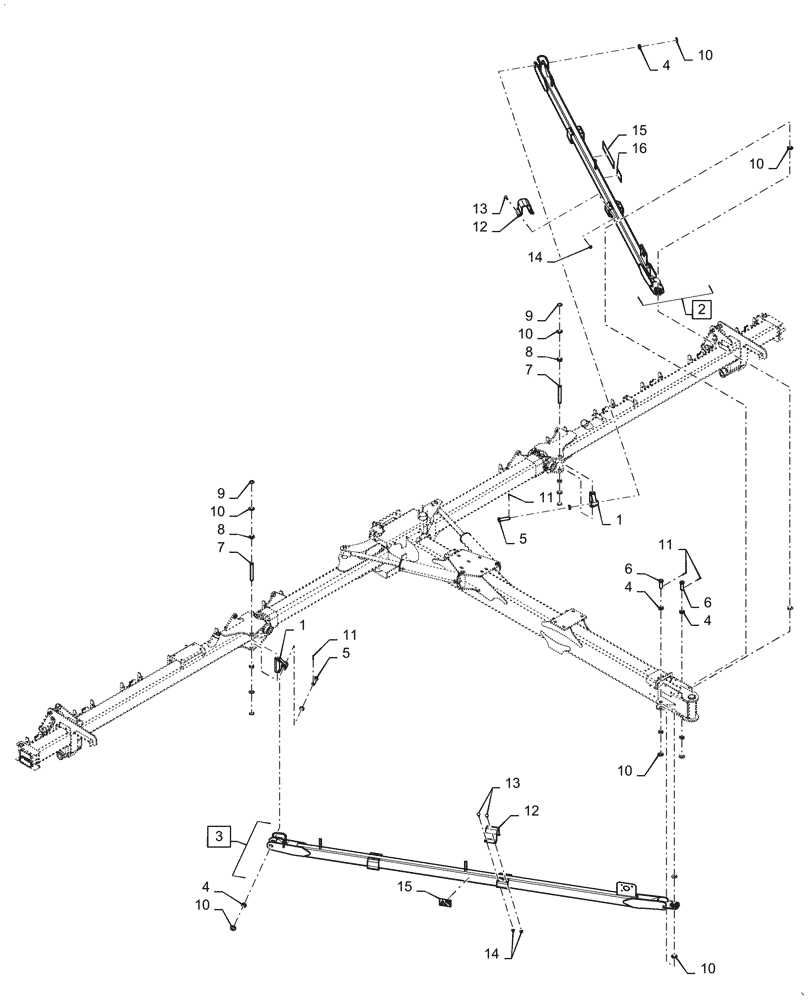

Схема запчастей Case IH 2150 - (37.120.AO[01]) - DRAFT TUBES, 12 / 16 ROW (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
10
6
4
4
6
16
5
12
12
2
15
10
14
11
1
4
5
10
10
13
4
9
9
10
11
1
13
14
10
15
8
8
7
11
10
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

73368130

KNUCKLE

Draft Tube Long

2шт.

2

47812951

BEAM

Left Draft Tube Red With Decals Inlc 15-16

1шт.

3

47812953

BEAM

Right Draft Tube Red With Decals Incl

1шт.

4

87504524

BUSHING

Tension

8шт.

5

87575681

HEADED PIN

1.25 x 4.800 "

2шт.

6

87575682

HEADED PIN

1.25 x 3.800"

2шт.

7

87717819

PIN

31.75 x 220.0 mm

2шт.

8

47771437

BUSHING

Tension

4шт.

9

86625148

SNAP RING,#125, Ext

4шт.

10

87023158

WASHER,1.31" ID x 2.5" OD x 0.15" Thk

12шт.

11

88182

COTTER PIN,1/4" OD x 2" L

4шт.

12

47829680

CHANNEL

Tube Cover Red

2шт.

13

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

8шт.

14

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

8шт.

15

47433192

DECAL

Warning Pinch Hazard

1шт.

16

47433182

DECAL

Chemical Hazard

1шт.
