(44.530.AB[01]) - CARRYING WHEEL SUSPENSION, CENTER SECTION 12/16 ROW

Запчасти Case IH 2150 (44.530.AB[01]) - CARRYING WHEEL SUSPENSION, CENTER SECTION 12/16 ROW (44) - WHEELS

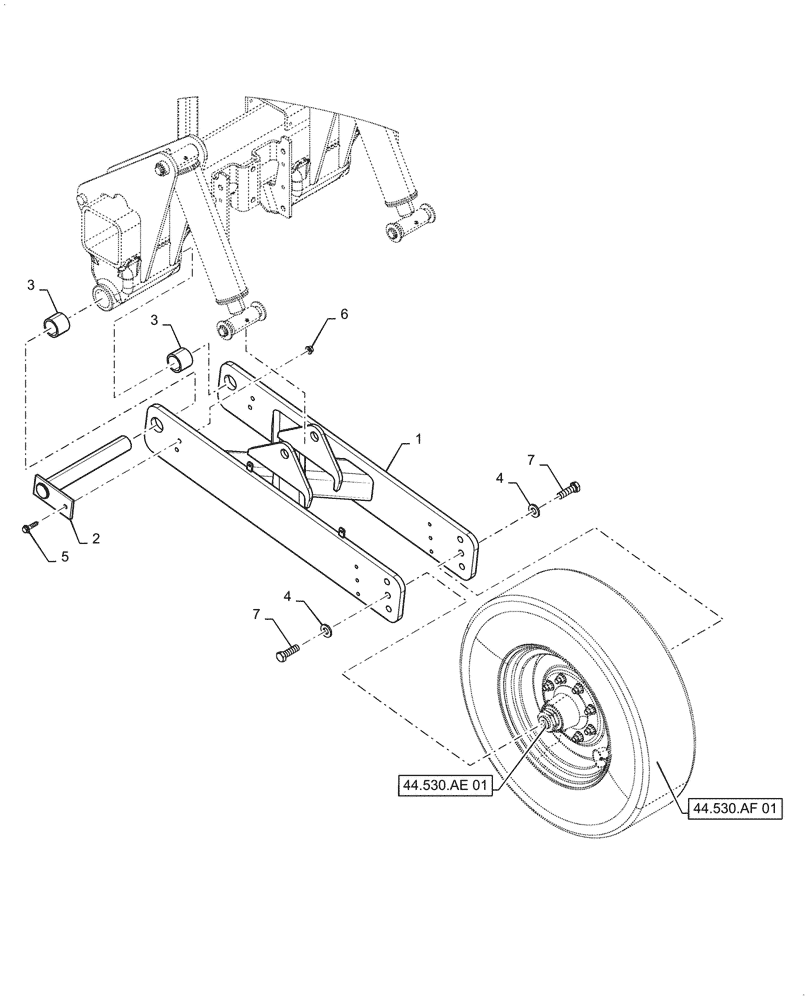

Схема запчастей Case IH 2150 - (44.530.AB[01]) - CARRYING WHEEL SUSPENSION, CENTER SECTION 12/16 ROW (44) - WHEELS
44.530.af 01
7
1
4
4
3
5
2
7
6
3
44.530.ae 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

73368111

FRAME

Center Section

4шт.

2

87503053

PIN

Wheel Pivot

4шт.

3

87632788

BUSHING

2.50 OD x 2.0 ID

8шт.

4

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

8шт.

5

87672196

FLANGE BOLT,Hex, M12 x 45mm, Cl 10.9

4шт.

6

86512497

FLANGE NUT,M12 x 1.75, Cl 10

4шт.

7

86639154

BOLT,Hex, M20 x 65mm, Cl 10.9

8шт.
