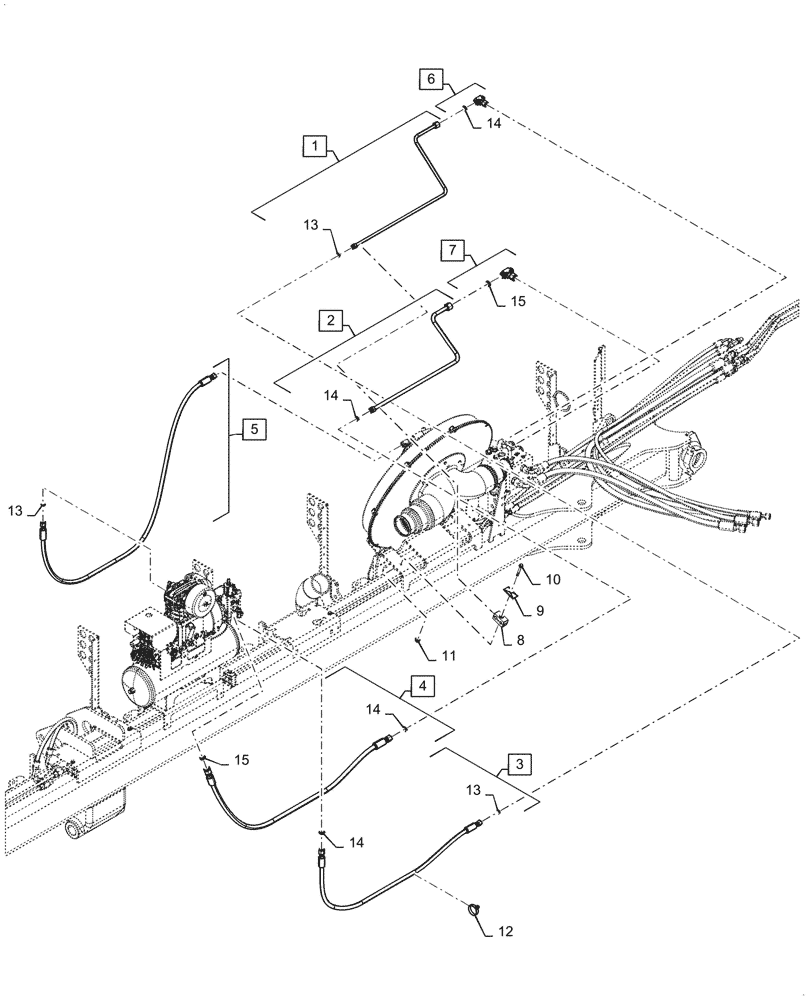

Запчасти Case IH 2150 (35.100.AA[02]) - HYDRAULICS AIR COMPRESSOR, 24 ROW (35) - HYDRAULIC SYSTEMS

1

47798471

TUBE

Air Compressor Supply, 1065mm L, Incl 13

1шт.

2

47798473

TUBE

Air Compressor Return, 933mm L, Incl 14

1шт.

3

47798475

HYDRAULIC HOSE

10mm ID x 1410mm L, Incl 13, 14

1шт.

4

47798476

HYDRAULIC HOSE

12mm ID x 1390mm L, Incl 14, 15

1шт.

5

47804271

HYDRAULIC HOSE

10mm ID x 1930mm L, Incl 13

1шт.

6

84431325

TEE,13/16"-16 ORFS x 13/16"-16 Fem Sw Br

Incl 14

1шт.

7

87564726

TEE,1-14 ORFS x 1-1/8' ORFS

Incl 15

1шт.

8

87000139

CLAMP

2шт.

9

87000230

PLATE

2шт.

10

87656138

BOLT,M8 x 78.1mm, Cl 10.9

2шт.

11

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

12

84360212

CABLE TIE,294.2mm L, Nylon

3шт.

13

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

14

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

15

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.
