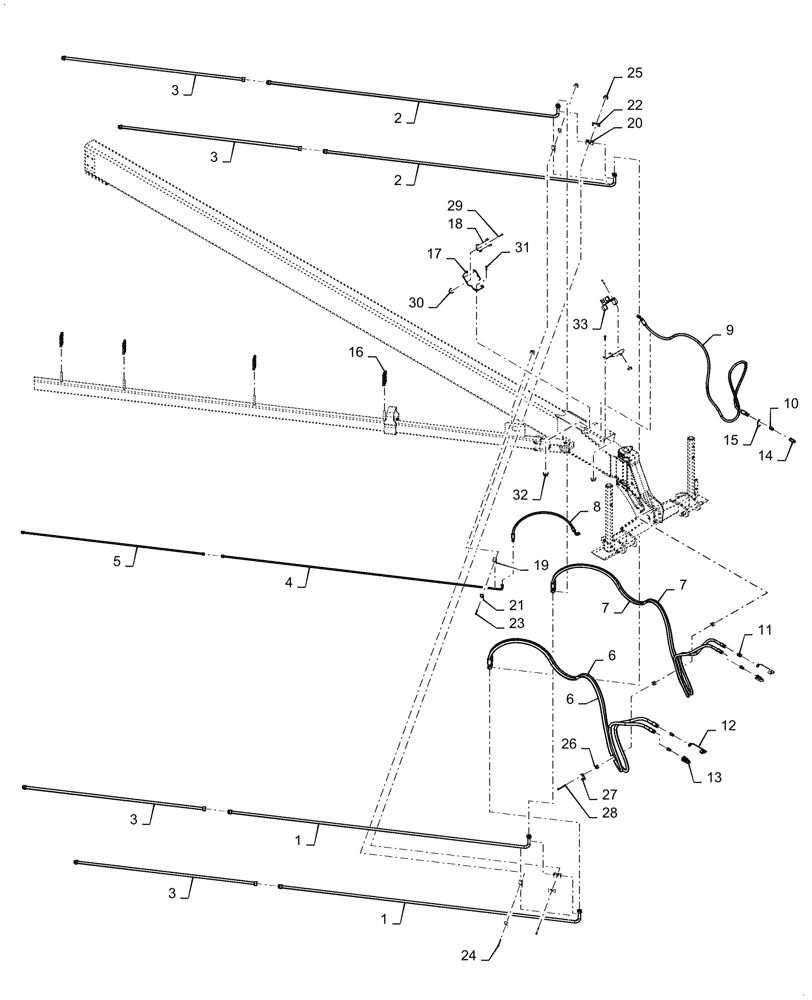

Запчасти Case IH 2150 (35.100.BI[22]) - HYDRAULIC REMOTE LINES RIGHT, 24 ROW (35) - HYDRAULIC SYSTEMS

1

84532902

HYD TUBE

Draft

2шт.

2

47788919

TUBE

Draft Tube

2шт.

3

47786299

HYD TUBE

Draft Tube

4шт.

4

47789845

HYD TUBE

Case Drain

1шт.

5

47803727

HYD TUBE

Case Drain

1шт.

6

47799814

HYDRAULIC HOSE

19mm x 4290mm Long

2шт.

7

47800008

HYDRAULIC HOSE

16mm x 4290mm Long

2шт.

8

47842339

HYDRAULIC HOSE

10 mm x 1015mm

1шт.

9

47800568

HYDRAULIC HOSE

12mm ID x 3250mm

1шт.

10

9992342

HYD CONNECTOR,13/16" - 16 ORFS x 9/16" - 18 ORB

1шт.

11

86592080

QUICK MALE COUPLING

4шт.

12

333721A1

CAP

Quick Coupler Red

2шт.

13

333719A1

CAP

Quick Coupler Yellow

2шт.

14

385358A1

QUICK MALE COUPLING,3/8"

1шт.

15

47432848

DECAL

Case Drain

1шт.

16

47692514

SUPPORT

Tube

4шт.

17

47755837

BRACKET

Hose Support

2шт.

18

84126824

CLAMP BRACKET

1шт.

19

87000149

CLAMP

12.7 x 12.7

1шт.

20

87000152

CLAMP,25.4mm D Clamping Pipes x 2

4шт.

21

87000230

PLATE

Cover

1шт.

22

1186005

PLATE

Cover

4шт.

23

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

1шт.

24

16045521

SCREW,Hex, M8 x 115, 8.8

2шт.

25

68841

NUT,M8 x 1.25, Cl 8

3шт.

26

87482623

CLAMP

Large

6шт.

27

47895228

COVER

Plate

1шт.

28

47919372

BOLT

M10

2шт.

29

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

4шт.

30

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

31

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

4шт.

32

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

33

47876048

BRACKET

Hose Clamp Red

1шт.
