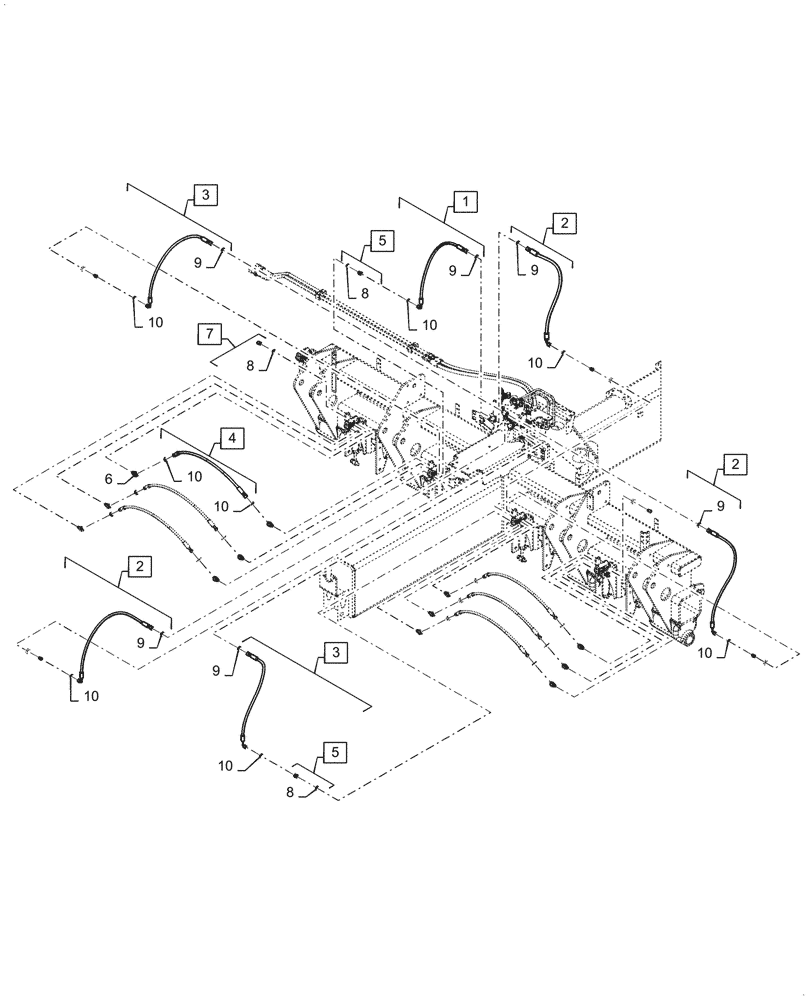

Запчасти Case IH 2150 (35.744.AD[09]) - DELTA FORCE COLLECTOR, CENTER SECTION, 24 ROW (35) - HYDRAULIC SYSTEMS

1

47955068

HYDRAULIC HOSE

710mm L, Incl 9, 10

1шт.

2

47955069

HYDRAULIC HOSE

885mm L, Incl 9, 10

3шт.

3

47955070

HYDRAULIC HOSE

810mm L, Incl 9, 10, 90 ° Fitting

2шт.

4

47999950

HYDRAULIC HOSE

810mm L, Incl 10, Straight Hose

6шт.

5

85802803

FITTING,9/16"-18 ORFS x 9/16"-18 ORB

Incl 8

6шт.

6

201-328

ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

12шт.

7

76349

PLUG,9/16" - 18 ORB

Incl 8

6шт.

8

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

12шт.

9

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

10

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

12шт.
