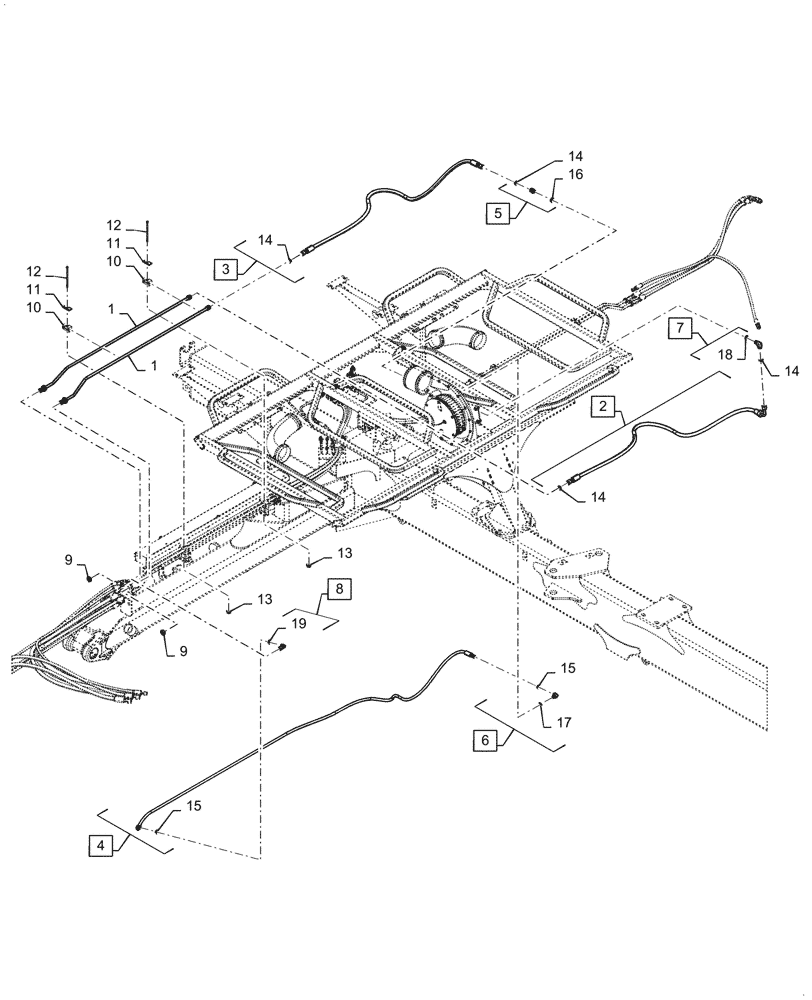

Запчасти Case IH 2150 (35.744.AH[06]) - BULK FILL FAN HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

47918958

TUBE

1578mm L

2шт.

2

47795894

HYDRAULIC HOSE

2020mm L, Incl 14

1шт.

3

47795896

HYDRAULIC HOSE

1905mm L, Incl 14

1шт.

4

47797237

HOSE WASHER

3910mm L, Incl 15

1шт.

5

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

Incl 14, 16

1шт.

6

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

Incl 15, 17

1шт.

7

87530404

90 ELBOW,1-14' ORFS x 3/4-16 ORB

Incl 14, 18

1шт.

8

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 19

1шт.

9

86639085

BHD LOCK NUT,1"-14, Bulkhead

2шт.

10

87000150

CLAMP,15.869mm ID

2шт.

11

87000230

PLATE

2шт.

12

87690472

BOLT,Hex, M8 x 180mm, Cl 8.8

2шт.

13

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

14

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

6шт.

15

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

16

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.
