(36.100.AB[11]) - PNEUMATIC TILLAGE ATTACHMENT DOWN FORCE, 24 ROW

Запчасти Case IH 2150 (36.100.AB[11]) - PNEUMATIC TILLAGE ATTACHMENT DOWN FORCE, 24 ROW (36) - PNEUMATIC SYSTEM

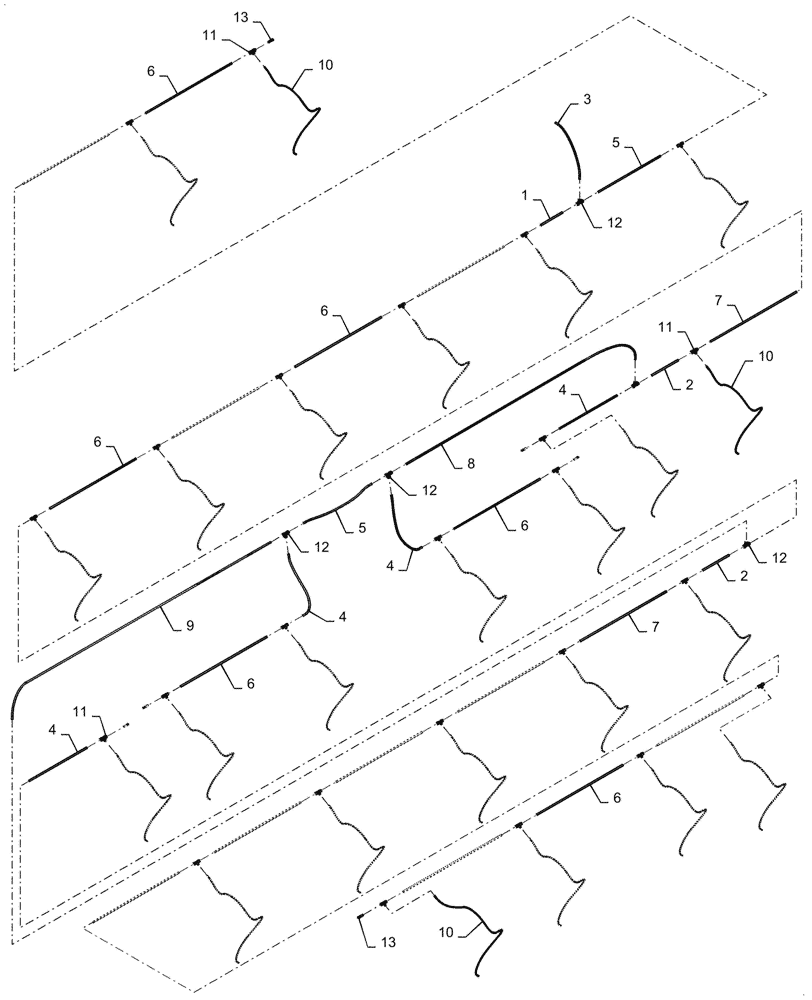

Схема запчастей Case IH 2150 - (36.100.AB[11]) - PNEUMATIC TILLAGE ATTACHMENT DOWN FORCE, 24 ROW (36) - PNEUMATIC SYSTEM
6
10
13
5
7
11
2
6
10
4
4
12
13
9
4
12
3
4
6
1
6
5
8
12
11
12
10
11
6
7
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47619235

TUBE

Bulk, 3/8", Cut to 120mm, Red

1шт.

2

47619235

TUBE

Bulk, 3/8", Cut to 200mm, Red

2шт.

3

47619235

TUBE

Bulk, 3/8", Cut to 430mm, Red

1шт.

4

47619235

TUBE

Bulk, 3/8", Cut to 500mm, Red

4шт.

5

47619235

TUBE

Bulk, 3/8", Cut to 630mm, Red

1шт.

6

47619235

TUBE

Bulk, 3/8", Cut to 740mm, Red

15шт.

7

47619235

TUBE

Bulk, 3/8", Cut to 790mm, Red

2шт.

8

47619235

TUBE

Bulk, 3/8", Cut to 2600mm, Red

1шт.

9

47619235

TUBE

Bulk, 3/8", Cut to 2900mm, Red

1шт.

10

47595484

TUBE

Bulk, 1/4", Cut to 1320mm, Red

24шт.

11

47633933

HYD CONNECTOR

PTC 3/8" x 3/8" x 1/4"

24шт.

12

47633932

HYD CONNECTOR

PTC 3/8" x 3/8" x 3/8"

5шт.

13

47705231

PLUG

Plastic 3/8"

6шт.
