(36.100.AB[12]) - PNEUMATIC TILLAGE ATTACHMENT UP FORCE, 24 ROW

Запчасти Case IH 2150 (36.100.AB[12]) - PNEUMATIC TILLAGE ATTACHMENT UP FORCE, 24 ROW (36) - PNEUMATIC SYSTEM

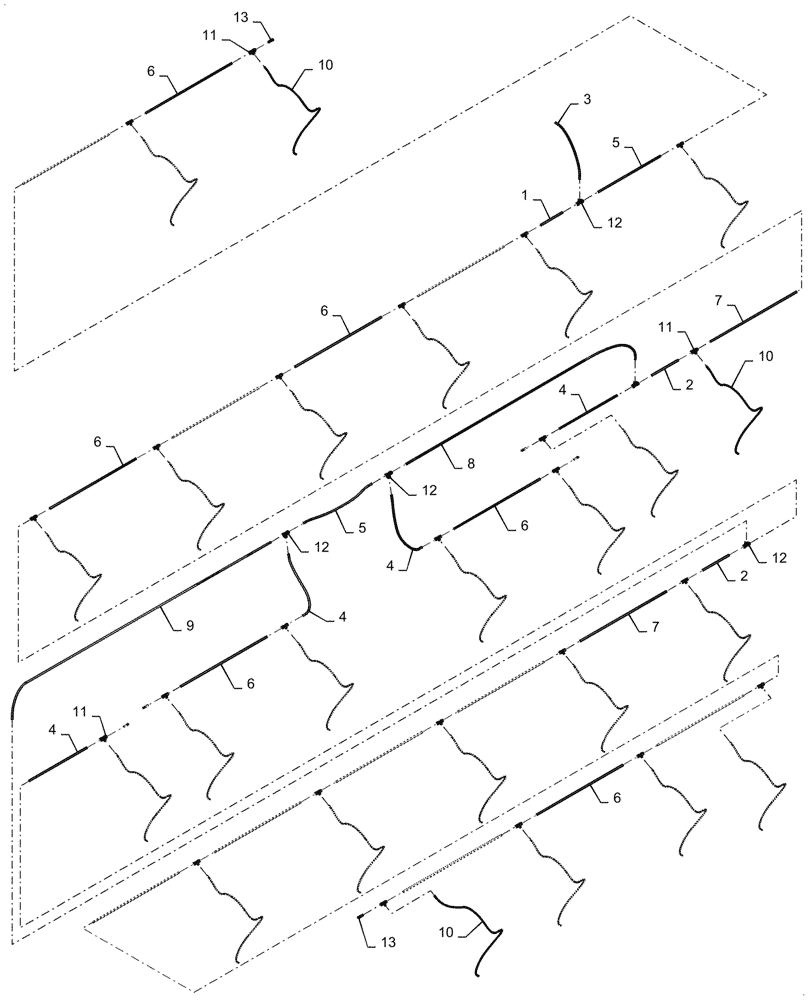

Схема запчастей Case IH 2150 - (36.100.AB[12]) - PNEUMATIC TILLAGE ATTACHMENT UP FORCE, 24 ROW (36) - PNEUMATIC SYSTEM
1
4
13
3
11
7
8
11
6
6
9
6
6
10
12
5
4
10
4
10
12
12
7
6
13
6
11
2
12
4
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47619236

TUBE

Bulk, 3/8" Cut to 120mm, Silver

1шт.

2

47619236

TUBE

Bulk, 3/8" Cut to 200mm, Silver

2шт.

3

47619236

TUBE

Bulk, 3/8" Cut to 430mm, Silver

1шт.

4

47619236

TUBE

Bulk, 3/8" Cut to 500mm, Silver

4шт.

5

47619236

TUBE

Bulk, 3/8" Cut to 630mm, Silver

2шт.

6

47619236

TUBE

Bulk, 3/8" Cut to 740mm, Silver

15шт.

7

47619236

TUBE

Bulk, 3/8" Cut to 790mm, Silver

2шт.

8

47619236

TUBE

Bulk, 3/8" Cut to 2600mm, Silver

1шт.

9

47619236

TUBE

Bulk, 3/8" Cut to 2900mm, Silver

1шт.

10

47619236

TUBE

Bulk, 1/4" Cut to 1190mm, Silver

24шт.

11

47633933

HYD CONNECTOR

24шт.

12

47633932

HYD CONNECTOR

5шт.

13

47705231

PLUG

6шт.
