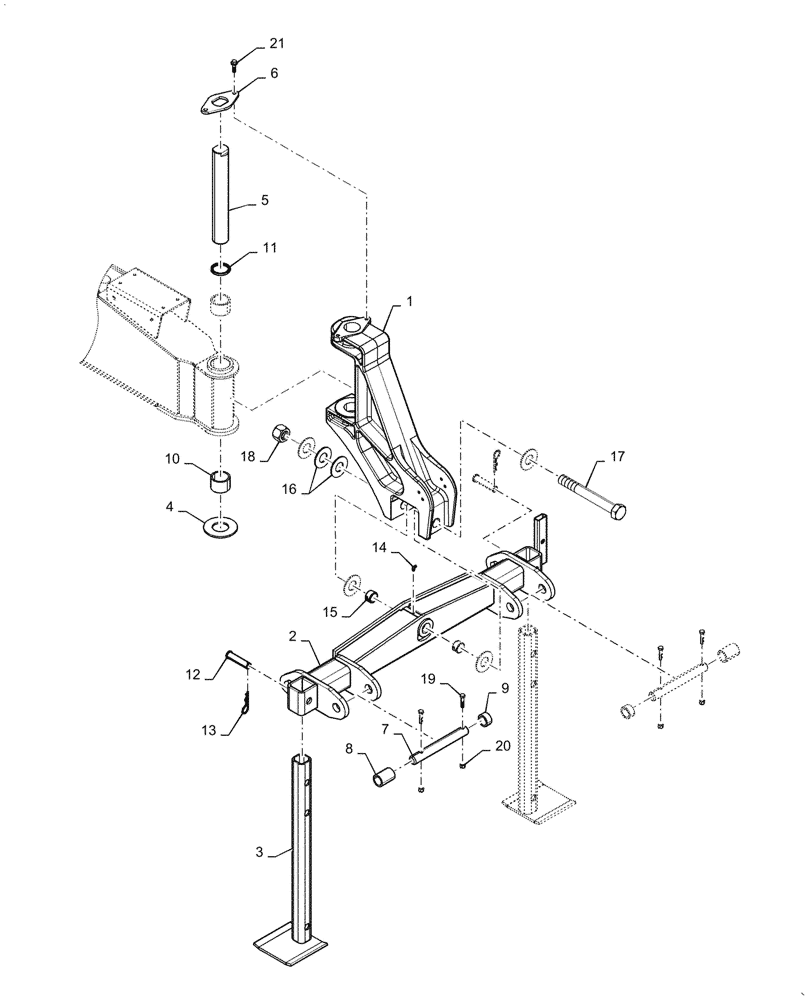

Запчасти Case IH 2150 (37.100.AF[07]) - HITCH 2 POINT, 24 ROW (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47807671

KNUCKLE

2 Point 24 Row Red

1шт.

2

84484096

TUBE

Hitch Cross

1шт.

3

87549566

STAND

Planter

2шт.

4

87505768

PAD

Wear

1шт.

5

47762632

PIN

24 Row 2 Point

1шт.

6

47762634

PLATE

Pin Lock

1шт.

7

87566119

PIN

Lower

2шт.

8

599801R1

SPACER

Hitch Pin

2шт.

9

284219A1

SPACER

Hitch Pin

2шт.

10

47901423

BUSHING

Polylube

2шт.

11

84331837

SEAL

Ring Wiper

1шт.

12

87403990

HEADED PIN

1.00" x 4.28"

2шт.

13

1978738C1

HAIR PIN COTTER

2шт.

14

323713

LUBE NIPPLE,M6 x 1mm

1шт.

15

22093

BUSHING,1-1/2" ID x 1-3/4" OD x 1" Thk

2шт.

16

87371

WASHER,1.62" ID x 3.5" OD x 0.18" Thk

6шт.

17

87358257

BOLT

1.5 x 12.0"

1шт.

18

87020431

LOCK NUT

1-1/2"

1шт.

19

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

4шт.

20

100038

NUT,M12 x 1.75, Cl 8

4шт.

21

9804268

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

2шт.
