(77.105.AF[12]) - CLOSING AIR PLUMBING 24 ROW FRONT FOLD

Запчасти Case IH 2150 (77.105.AF[12]) - CLOSING AIR PLUMBING 24 ROW FRONT FOLD (77) - SEEDING/PLANTING

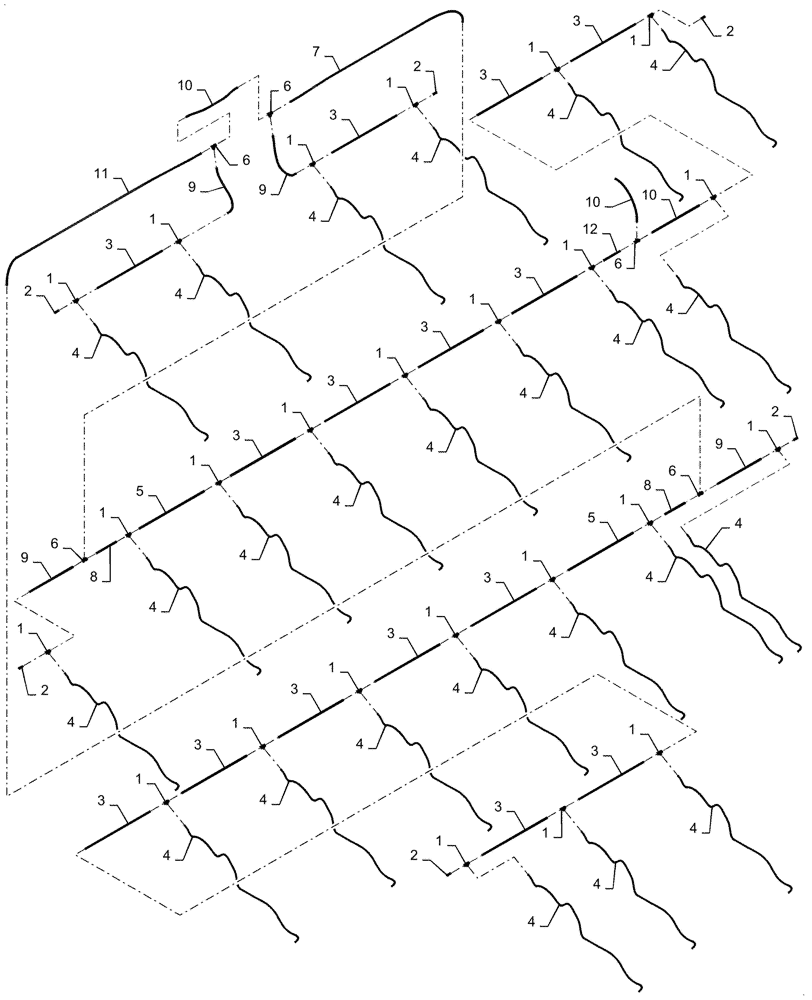

Схема запчастей Case IH 2150 - (77.105.AF[12]) - CLOSING AIR PLUMBING 24 ROW FRONT FOLD (77) - SEEDING/PLANTING
6
8
6
4
4
2
8
1
1
1
1
6
5
4
1
4
3
4
3
4
4
4
3
4
9
12
4
2
4
3
1
1
1
1
4
1
7
4
2
10
3
10
2
3
4
2
1
9
4
5
2
1
6
4
3
1
4
1
4
1
1
1
4
4
1
4
1
1
9
3
10
4
6
1
1
1
3
1
4
3
3
3
3
3
9
4
3
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47633933

HYD CONNECTOR

24шт.

2

47705231

PLUG

6шт.

3

47943437

PLASTIC-RUBBER TUBE

Bulk 3/8" ID, Cut to Length 740mm, Blue

15шт.

4

47943430

PLASTIC-RUBBER TUBE

Bulk 1/4" ID, Cut to Length 1925mm, Blue

24шт.

5

47943437

PLASTIC-RUBBER TUBE

Bulk 3/8" ID, Cut to Length 790mm, Blue

2шт.

6

47633932

HYD CONNECTOR

5шт.

7

47943437

PLASTIC-RUBBER TUBE

Bulk 3/8" ID, Cut to Length 2900mm, Blue

1шт.

8

47943437

PLASTIC-RUBBER TUBE

Bulk 3/8" ID, Cut to Length 200mm, Blue

2шт.

9

47943437

PLASTIC-RUBBER TUBE

Bulk 3/8" ID, Cut to Length 500mm, Blue

4шт.

10

47943437

PLASTIC-RUBBER TUBE

Bulk 3/8" ID, Cut to Length 630mm, Blue

3шт.

11

47943437

PLASTIC-RUBBER TUBE

Bulk 3/8" ID, Cut to Length 2600mm, Blue

1шт.

12

47943437

PLASTIC-RUBBER TUBE

Bulk 3/8" ID, Cut to Length 1200mm, Blue

1шт.
