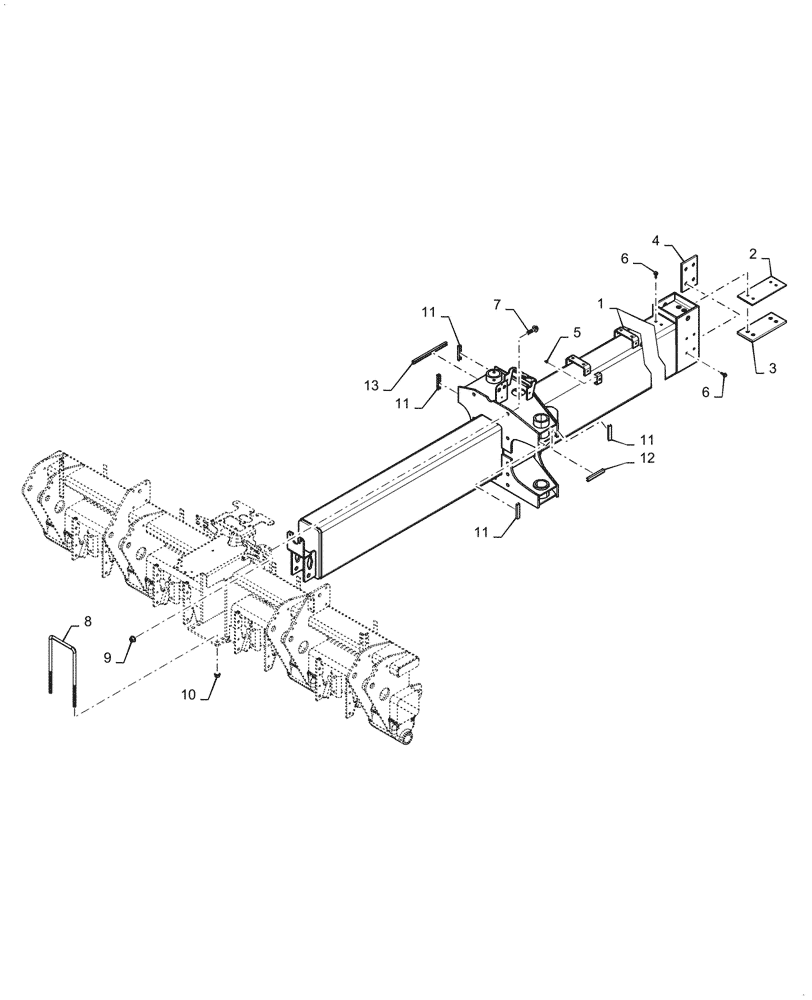

Запчасти Case IH 2150 (37.100.AF[09]) - OUTER HITCH, 24 ROW (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47748284

HITCH

Outer 24 Row

1шт.

2

87540703

PLATE

Anti-Skid

1шт.

3

47711755

PAD

5.5" x 12.5"

1шт.

4

47711761

PAD

5.5" x 9"

2шт.

5

87556072

NUT,Flng, 11.8mm OD x 19.8mm L

6шт.

6

9670066

FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8

12шт.

7

86511854

BOLT,Hex Flg, M20 x 70, 8.8

12шт.

8

87503060

U-BOLT

3/4"

2шт.

9

86512496

FLANGE NUT,M20 x 2.5, Flg, Cl 8

12шт.

10

84490435

FLANGE NUT

3/4"

4шт.

11

48091725

Bulk, Cut to Length, 115mm

TRIM

4шт.

12

48091725

Bulk, Cut to Length, 153mm

TRIM

2шт.

13

48091725

Bulk, Cut to Length 315mm

TRIM

2шт.
