(63.110.AF[11]) - RETURN AND SUPPLY LINES WITH BULK FILL TANK

Запчасти Case IH 2160 (63.110.AF[11]) - RETURN AND SUPPLY LINES WITH BULK FILL TANK (63) - CHEMICAL APPLICATORS

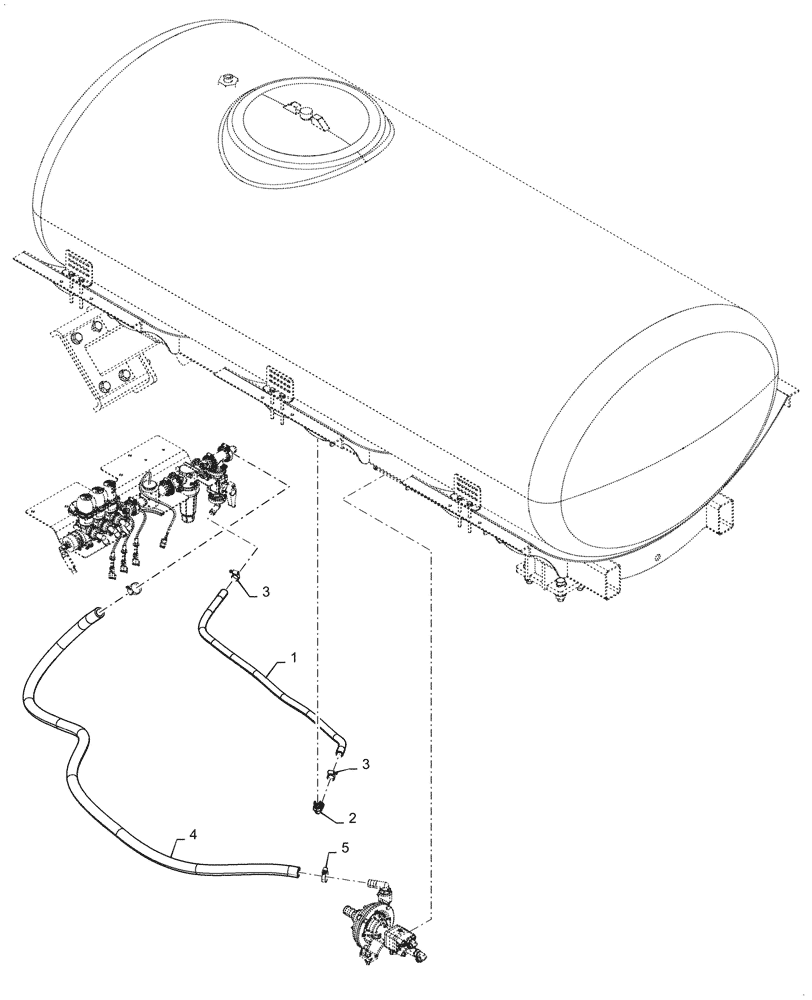

Схема запчастей Case IH 2160 - (63.110.AF[11]) - RETURN AND SUPPLY LINES WITH BULK FILL TANK (63) - CHEMICAL APPLICATORS
3
4
2
3
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

241923A1

HOSE

.75 Bulk Roll Cut To Length 1257 mm

1шт.

2

405778A1

ELBOW

3/4"

1шт.

3

47855668

CLAMP

2шт.

4

134329C3

HOSE

Bulk 1" Cut To Length 2438 mm

1шт.

5

86643166

HOSE CLAMP,#16, 20.6mm - 38.1mm, Type F Worm Gear, W/ Liner

2шт.
