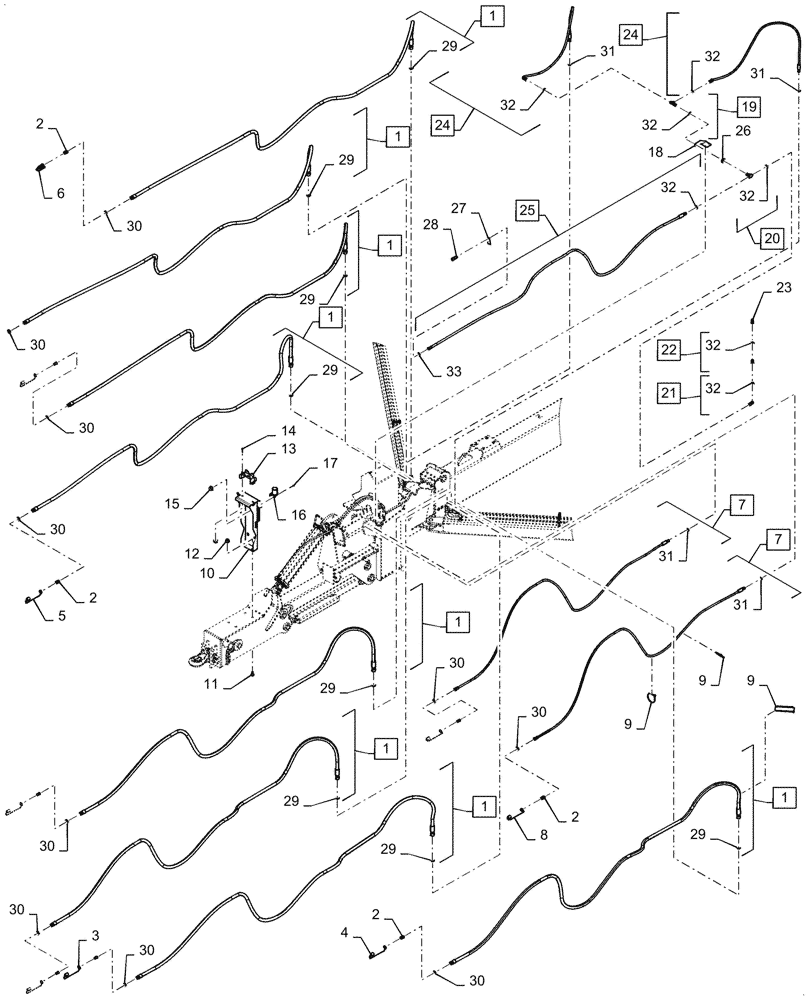

Запчасти Case IH 2160 (35.100.BI[30]) - COLLECTOR HYDRAULIC HOSE ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

84538055

HYDRAULIC HOSE

5150mm L, Incl 29, 30

8шт.

2

1272399C2

QUICK MALE COUPLING

10шт.

3

333721A1

CAP

Red

2шт.

4

333717A1

CAP

Blue

2шт.

5

333720A1

CAP

Black

2шт.

6

333719A1

CAP

Yellow

2шт.

7

84538060

HYDRAULIC HOSE

3400mm L, Incl 30, 31

2шт.

8

333718A1

CAP

Orange

2шт.

9

87502040

CABLE TIE

Large

15шт.

10

84351945

CLAMP BRACKET

1шт.

11

9804271

BOLT,Hex, M16 x 40mm, Cl 8.8, Full Thd

2шт.

12

9804280

FLANGE NUT,Hex, M16, Cl 8

2шт.

13

84126824

CLAMP BRACKET

1шт.

14

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

15

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

16

382110A1

CONTACT HOUSING

Holder, 7 Pin

1шт.

17

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

2шт.

18

47971219

BRACKET

Case Drain Pressure Switch

1шт.

19

47825113

UNION TEE

Incl 32

1шт.

20

84431325

TEE,13/16"-16 ORFS x 13/16"-16 Fem Sw Br

Incl 32

1шт.

21

87013112

ELBOW,45 Degree, 13/16"-16 x 13/16"-16 Fem Sw

Incl 32

1шт.

22

47745911

ADAPTER

Incl 32

1шт.

23

84389953

PRESSURE SWITCH

5 Bar

1шт.

24

47971205

HYDRAULIC HOSE

2050mm L, Incl 31, 32

2шт.

25

47971208

HYDRAULIC HOSE

4200mm L, Incl 32, 33

1шт.

26

87381289

BHD LOCK NUT,13/16"-16, 12mm OD

1шт.

27

47432848

DECAL

Case Drain

1шт.

28

385358A1

QUICK MALE COUPLING,3/8"

1шт.

29

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

8шт.

30

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

10шт.

31

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

32

9992898

O-RING

11шт.

33

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
