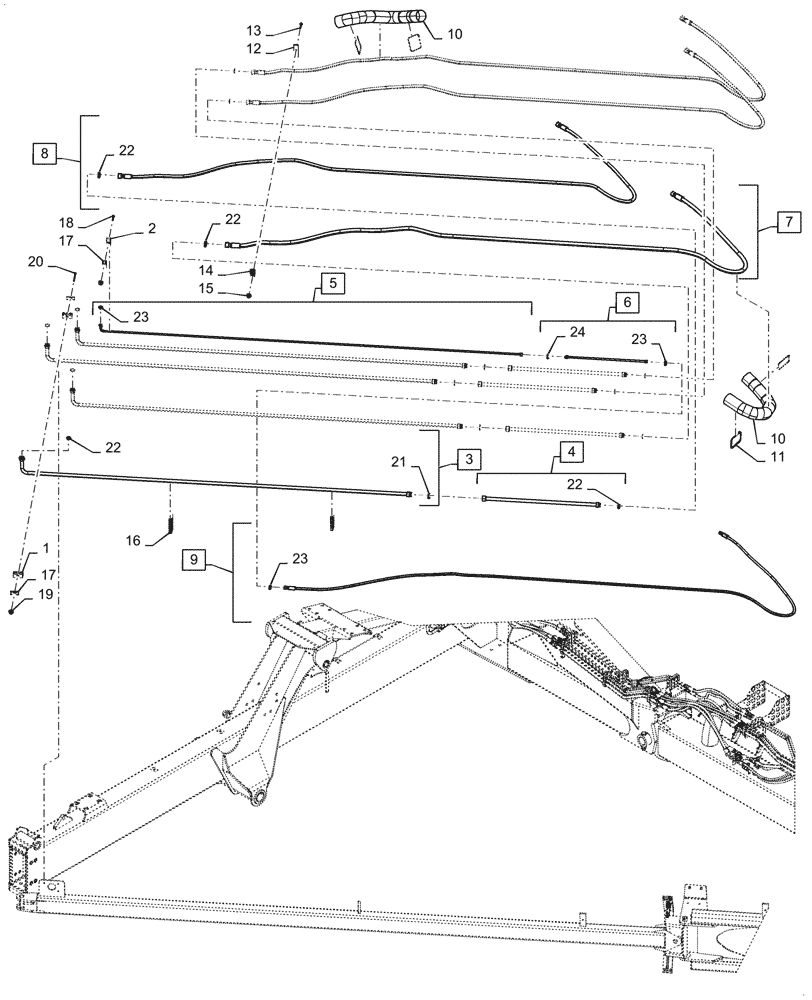

Запчасти Case IH 2160 (35.744.AD[12]) - LH DRAFT TUBE HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

87000152

CLAMP,25.4mm D Clamping Pipes x 2

4шт.

2

87000149

CLAMP

1шт.

3

84532902

HYD TUBE

3500mm L, Incl 21, 22

4шт.

4

84532939

HYD TUBE

978mm L, Incl 22

4шт.

5

84532904

HYD TUBE

3679mm L, incl 23

1шт.

6

84532941

HYD TUBE

679mm L, Incl 23, 24

1шт.

7

47948677

HYDRAULIC HOSE

5925mm L, Incl 22

1шт.

8

47950560

HYDRAULIC HOSE

5980mm L, Incl 22

3шт.

9

47978992

HYDRAULIC HOSE

5925mm L, Incl 23

1шт.

10

47798341

2шт.

11

87502038

CABLE TIE

4шт.

12

87545575

HOSE CLAMP

4шт.

13

9804265

FLANGE BOLT,Hex, M10 x 60mm, Cl 8.8

4шт.

14

48008971

MOUNT

4шт.

15

86619802

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

16

47692514

SUPPORT

3шт.

17

87000230

PLATE

5шт.

18

87017615

BOLT,Hex, M8 x 65mm, Cl 8.8

1шт.

19

87681210

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

20

86528166

BOLT,M8 x 1.25 x 126.58mm, Cl 8.8

2шт.

21

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

22

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

16шт.

23

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

24

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.
