(55.015.AB[07]) - WIRE HARNESS WING POWER, 36 ROW

Запчасти Case IH 2160 (55.015.AB[07]) - WIRE HARNESS WING POWER, 36 ROW (55) - ELECTRICAL SYSTEMS

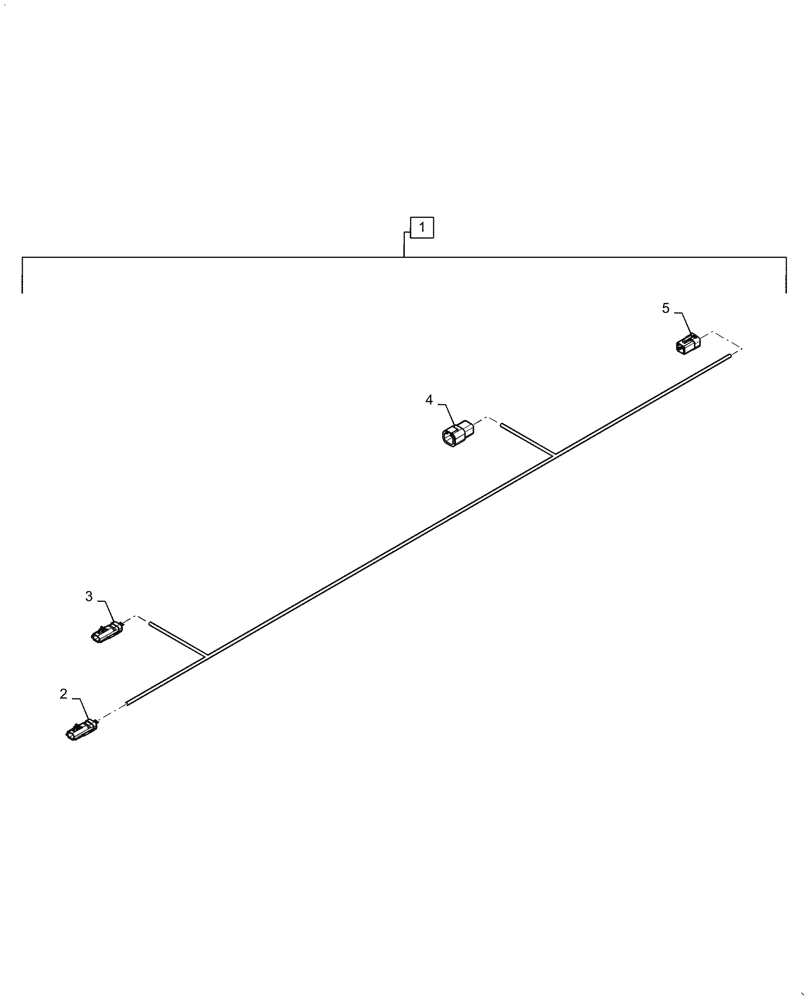

Схема запчастей Case IH 2160 - (55.015.AB[07]) - WIRE HARNESS WING POWER, 36 ROW (55) - ELECTRICAL SYSTEMS
4
5
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47877328

WIRE HARNESS

Assembly, 2 - 5, 36 Row 30"

1шт.

1

47745738

WIRE HARNESS

Assembly, 2 - 5, 36 Row 20"

1шт.

2

87382907

WIRE CONNECTOR,Male

RH Bus Power 1

1шт.

3

87382907

WIRE CONNECTOR,Male

RH Bus Power 2

1шт.

4

87421341

MULTIPOLE CONNECTOR,Male, 4 Pole

Right Bus Power 1

1шт.

5

87707727

WIRE CONNECTOR

Right Bus Power 2

1шт.
