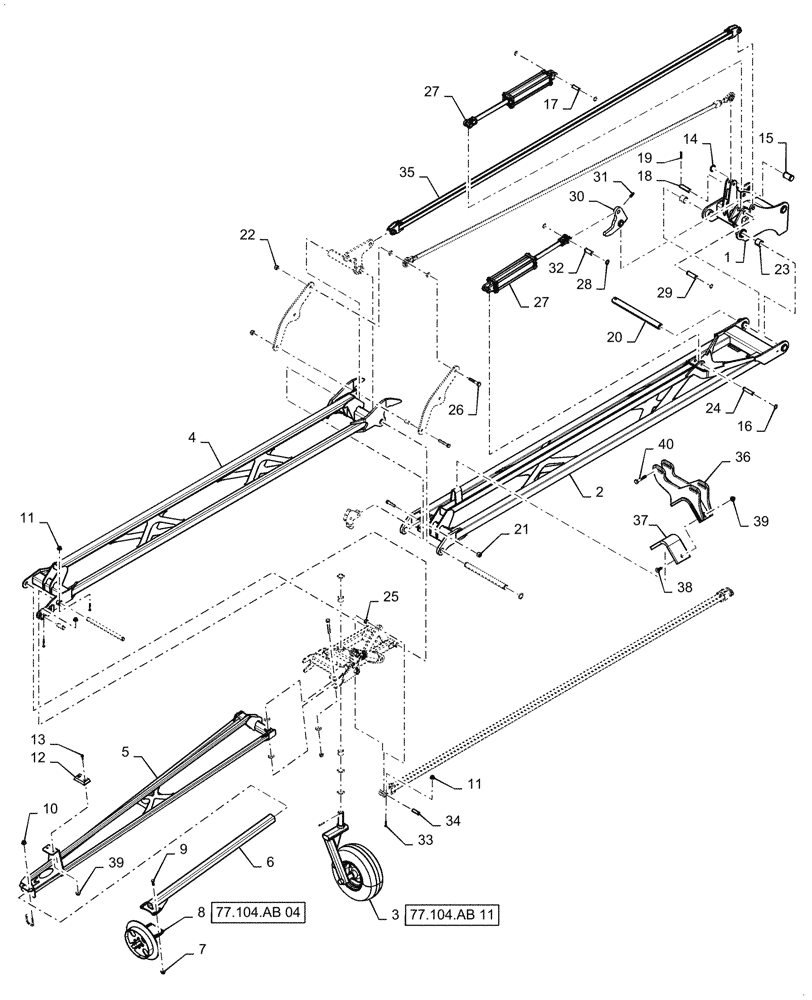

Запчасти Case IH 2160 (77.104.AB[09]) - MARKER 90 FOOT W/ STANDS (77) - SEEDING/PLANTING

1

84283526

KNUCKLE

Markker, Inner

1шт.

2

87486577

FRAME

Marker, Inner

1шт.

3

NSS

NOT SOLD SEPARAT

Caster Wheel Assembly, Refer to Figure 77.104.AB 11 For Service Parts

1шт.

4

87726253

FRAME

Idler

1шт.

5

84283566

FRAME

Marker Outlet

1шт.

6

87486578

FRAME

Marker Exterior

1шт.

7

9804280

FLANGE NUT,Hex, M16, Cl 8

2шт.

8

NSS

NOT SOLD SEPARAT

Disk Assembly, Depth Band, Refer to Figure 77.104.AB 04 For Service Parts

1шт.

9

385922

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8

2шт.

10

86619803

FLANGE NUT

4шт.

11

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

7шт.

12

87505918

BUMPER

3шт.

13

84465306

BOLT,Hex, M10 x 35mm, Cl 10.9

6шт.

14

84158898

RING

4шт.

15

87735022

PIN

50.8mm x 69.5mm

2шт.

16

87019495

SNAP RING,#98, Ext

4шт.

17

84361344

PIN

25.4mm x 73.15mm

1шт.

18

87687202

PIN

31.75mm x 120mm

1шт.

19

87635861

ROLL PIN

1шт.

20

87735017

PIN

1шт.

21

725637

NUT,M20 x 2.5, Cl 8

1шт.

22

86639242

NUT,M22 x 2.5, Cl 8

2шт.

23

87686077

BUSHING

2шт.

24

87420397

PIN,25.4mm OD x 122mm L

1шт.

25

7995

BUSHING,25.5mm ID x 31.84mm OD x 19.05mm L

1шт.

26

1768905

BOLT,Hex, M22 x 2.5 x 110mm, Cl 10.9

1шт.

27

84282604

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

2шт.

28

86625148

SNAP RING,#125, Ext

4шт.

29

84194685

PIN

1шт.

30

84283611

LINKAGE

Float Marker

1шт.

31

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

32

84282947

PIN

1шт.

33

43249

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

1шт.

34

84276533

PIN

1шт.

35

87486579

FRAME

Link Inner

1шт.

36

84315368

SUPPORT

Marker Arm

1шт.

37

87694091

PAD

Marker Stop

1шт.

38

72181588

HEX SOC SCREW,Flat Hd, M10 x 35mm, Cl 8.8

2шт.

39

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

2шт.

40

86508494

BOLT

2шт.
