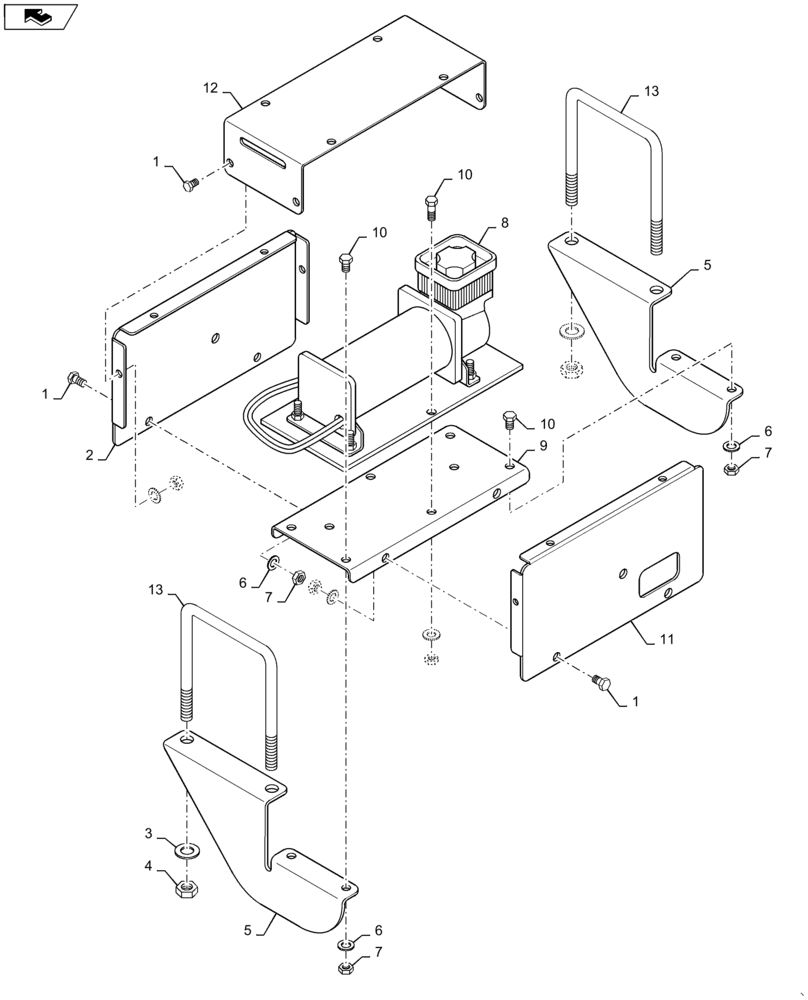

Запчасти Case IH 4025 (39.100.AB[05]) - TRU-COUNT COMPRESSOR MOUNTING (39) - FRAMES AND BALLASTING

1

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

2

73359104

COVER

TC COMPRESSOR COVER SIDE LEFT

1шт.

3

86729275

LOCK WASHER,5/8 0.634 CST ZND

3шт.

4

86625068

NUT,5/8"-11, G8

3шт.

5

73358909

BRACKET

COMPRESSOR MOUNT

2шт.

6

80680

LOCK WASHER,3/8 0.381 CST ZND

3шт.

7

280136

NUT,3/8"-16, G8

3шт.

8

73358104

AIR COMPRESSOR

ASSEMBLY

1шт.

9

73359004

PLATE

MOUNT PLATE

1шт.

10

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

11

73359105

COVER

TC COMPRESSOR COVER SIDE RIGHT

1шт.

12

73358854

COVER

COMPRESSOR COVER TOP

1шт.

13

73358608

U-BOLT

2шт.

14

73359275

FILTER

Inlc in 8

1шт.
