(77.904.AC[03]) - SEED DELIVERY TUBING

Запчасти Case IH 4025 (77.904.AC[03]) - SEED DELIVERY TUBING (77) - SEEDING/PLANTING

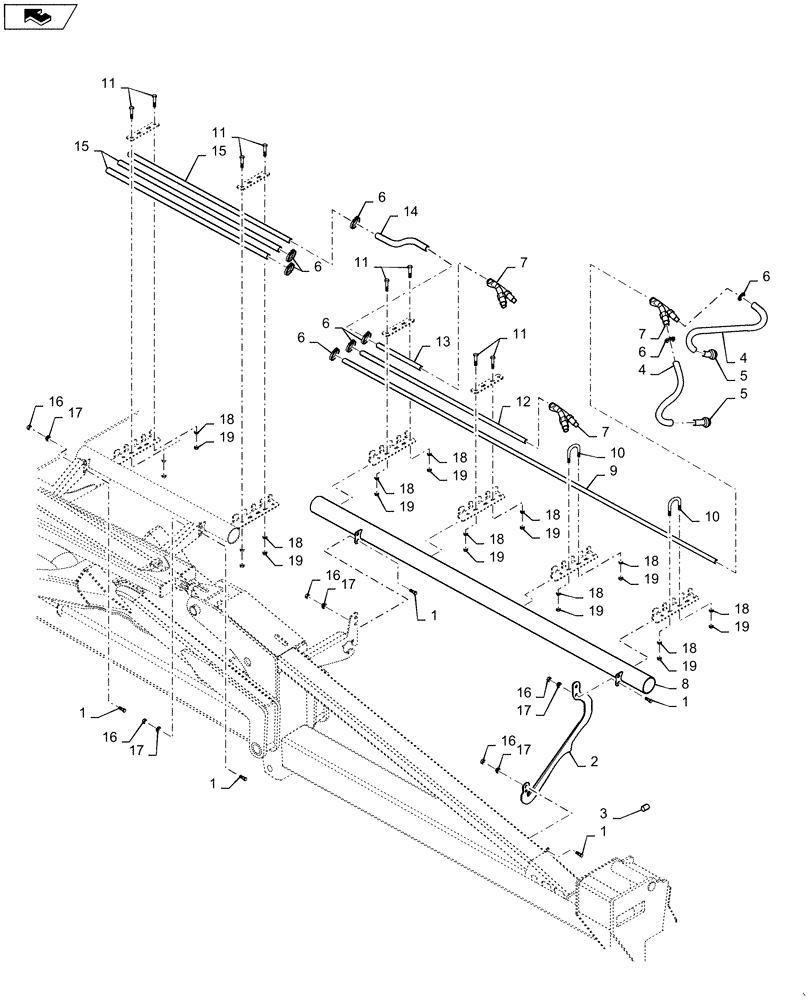

Схема запчастей Case IH 4025 - (77.904.AC[03]) - SEED DELIVERY TUBING (77) - SEEDING/PLANTING
5
8
6
7
18
19
19
19
6
3
13
16
11
6
7
1
7
19
11
16
17
19
1
18
19
6
16
18
12
home
18
18
17
17
18
11
18
17
14
18
4
18
16
19
2
19
15
1
6
16
18
1
11
4
19
19
10
17
15
5
10
1
9
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

5шт.

2

73359100

SUPPORT

L WING SEED TUBE OUTER

1шт.

3

73358024

PLUG

1шт.

4

73358035

HOSE

SEED DISCHARGE

1шт.

5

73358034

HOSE

BOOT LOCK RING

1шт.

6

87485002

CLAMP,1.06" - 2"

7шт.

7

73357251

BRACKET

PLANTER Y-TRANSITION ASSEMBLY, Incl 1, 16 - 19 For Assembly See Figure 77.904.AC (01)

2шт.

8

73357262

SUPPORT

SUPPORT L WING SEED TUBE 38IN

1шт.

8

73357263

SUPPORT

SUPPORT R WING SEED TUBE 38IN

1шт.

9

73358122

TUBE

TUBE SEED DELIVERY 83 AL

1шт.

9

73358123

TUBE

TUBE SEED DELIVERY 98 AL

1шт.

9

73358127

TUBE

SEED DELIVERY TUBE 073 AL

1шт.

10

73358607

U-BOLT

2шт.

11

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

8шт.

12

73358121

TUBE

TUBE SEED DELIVERY 46 AL

1шт.

12

73358126

TUBE

SEED DELIVERY TUBE 042 AL

1шт.

13

73358117

TUBE

TUBE SEED DELIVERY 10 AL

1шт.

13

73358118

TUBE

TUBE SEED DELIVERY 13 AL

1шт.

13

73358123

TUBE

TUBE SEED DELIVERY 98 AL

1шт.

14

73358256

HOSE

SEED, 1 1/2 CLEAR W/ RIBS

1шт.

15

73358120

TUBE

SEED DELIVERY 45 AL

3шт.

16

280136

NUT,3/8"-16, G8

5шт.

17

80680

LOCK WASHER,3/8 0.381 CST ZND

5шт.

18

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

12шт.

19

73358495

NUT

12шт.
