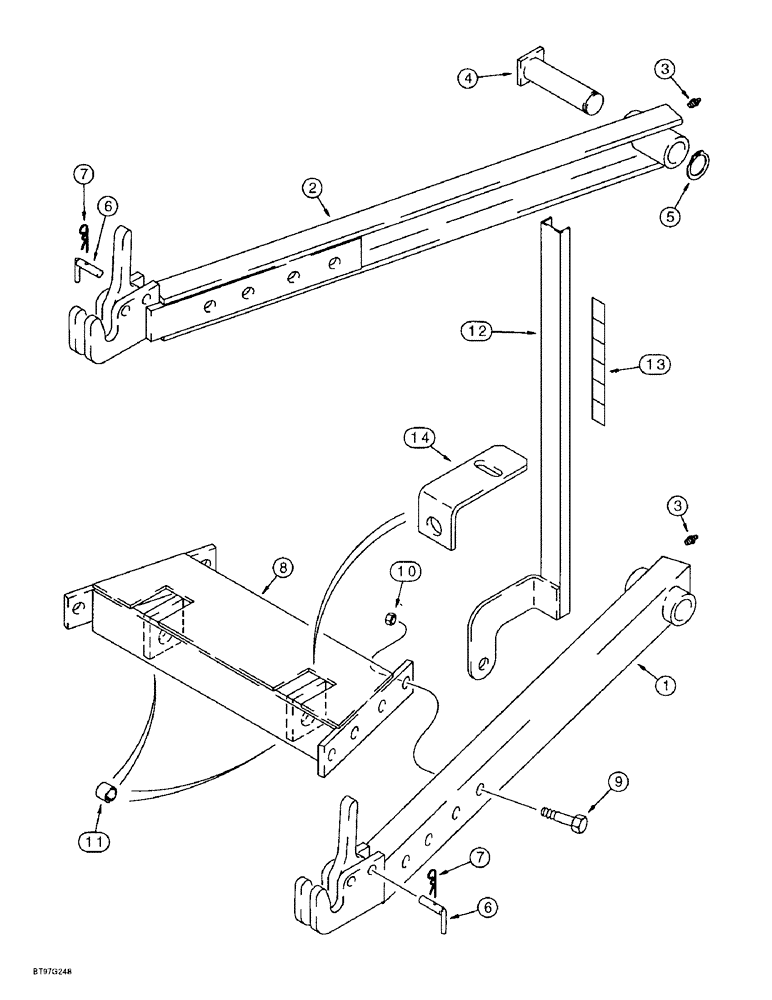

Запчасти Case IH 6100 (9-08) - UNDERSLUNG HITCH (09) - CHASSIS/ATTACHMENTS

1

220310A1

ARM

- underslung hitch, right-hand

1шт.

2

220309A1

ARM

- underslung hitch, left-hand

1шт.

3

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch

2шт.

4

142028A1

PIN

- underslung arm to main frame

2шт.

5

100-16175

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

6

142029A1

PIN

- quick latch

2шт.

7

136-164

COTTER PIN,Int, 5/16" x .120"

PIN - cotter, hair, 5/16 x 2-25/32 inch

2шт.

8

142071A1

LINK

- lift, underslung hitch

1шт.

9

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

8шт.

10

231-41112

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

8шт.

11

142295A1

BUSHING

- Tension, 1 inch ID

2шт.

12

142035A1

GAUGE

- depth

1шт.

13

142397A1

DECAL

- depth gauge

1шт.

14

142036A1

GUIDE

- depth gauge

1шт.
