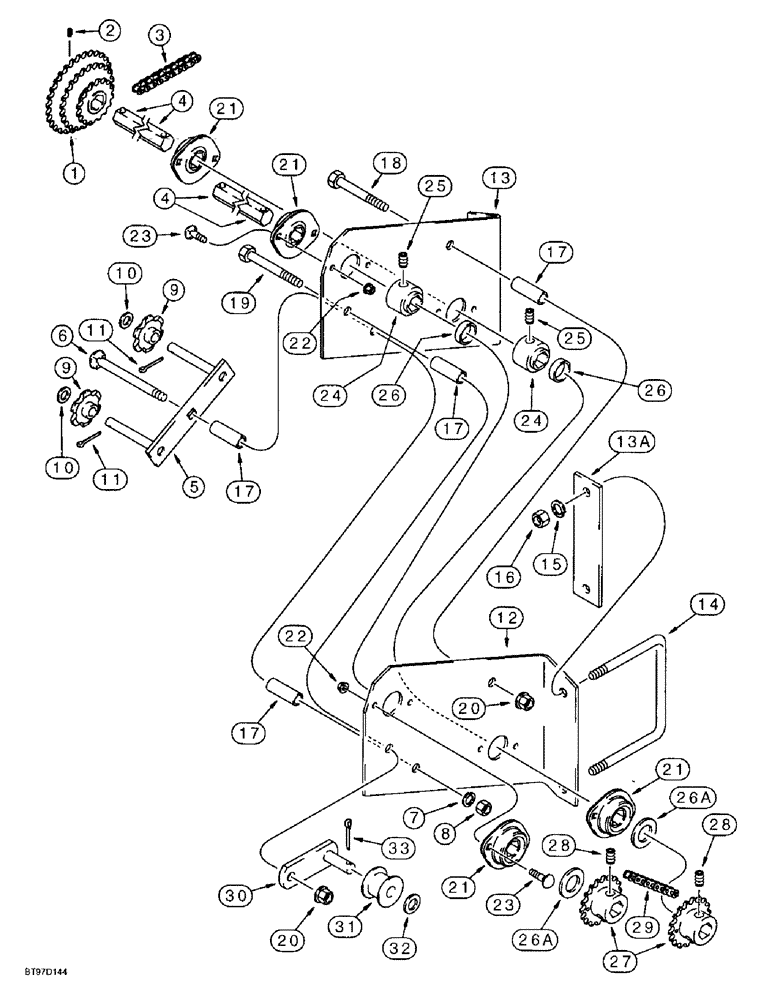

Запчасти Case IH 6100 (9-18) - DRY FERTILIZER TRANSMISSION DRIVE (09) - CHASSIS/ATTACHMENTS

1

135377A1

SPROCKET ASSY.

SPROCKET - triple, 16, 24 and 30 teeth, transmission input

1шт.

2

483-1508

SET SCREW,Hex Soc, 1/2"-13 x 1/2"

SCREW - set, hex socket headless, 1/2 NC x 1/2 inch, cup point

2шт.

3

245587A2

CHAIN - transmission drive, use 63 links from 569088R91 bulk chain and (1) 241-138 connecting link, see below

1шт.

4

229632A1

SHAFT

- drive, hex, 22 (7/8) x 305 mm (12 inch) long, transmission and jackshaft

2шт.

5

135378A1

ARM ASSY.

ARM - chain tightener

1шт.

6

133-5

CARRIAGE BOLT,Sq Nk, 1/2" - 13, LH Thd x 5 1/2", Gr 5

BOLT, CARRIAGE, , LH Thread, Used with right-hand transmission Short NK, 1/2"-13 x 5 1/2", G5

1шт.

6a

433-888

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 5 1/2", Gr 5

BOLT - carriage, 1/2 NC x 5-1/2 inch, used with left-hand transmission, not shown

1шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

8

125-10010

NUT,1/2"-13, G5, LH

- hex, left-hand thread, 1/2 inch NC, used with right-hand transmission

1шт.

8a

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Used with LH transmission, Not shown 1/2"-13, G5

1шт.

9

472344R3

SPROCKET

- idler, drive chain

2шт.

10

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat, 21/32 x 1-1/8 x 3/64 inch

2шт.

11

432-1216

COTTER PIN,3/16" x 1"

2шт.

12

228933A1

PLATE

SUPPORT - transmission, right-hand

1шт.

13

228934A1

PLATE

SUPPORT - transmission, left-hand

1шт.

13a

236599A1

PLATE

- transmission support

2шт.

14

229984A1

U-BOLT,1/2" - 13 x 5 1/4", Carbon Steel

- 1/2 inch NC, 6 x 4 inch

2шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

16

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

17

23885K

SPACER,3/4" Tube x 2 1/16"

- 3/4 x 2-1/16 inch

4шт.

18

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

19

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

1шт.

20

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

21

134158C92

BALL BEARING,22.5mm ID

- ball, hex, sealed, 7/8 inch

4шт.

22

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

23

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

8шт.

24

141572C2

COLLAR

HUB - sprocket

2шт.

25

483-1508

SET SCREW,Hex Soc, 1/2"-13 x 1/2"

SCREW - set, hex socket headless, 1/2 NC x 1/2 inch, cup point

4шт.

26

1277812C2

SPACER

- sprocket, 27 X 33 X 9 mm

2шт.

26a

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 1/8"

2шт.

27

103681A1

SPROCKET

- 18 teeth, transmission shaft and jackshaft

2шт.

28

483-1508

SET SCREW,Hex Soc, 1/2"-13 x 1/2"

SCREW - set, hex socket headless, 1/2 NC x 1/2 inch, cup point

4шт.

29

245588A1

CHAIN (AG)

CHAIN - drive, use 62 links from 1790D bulk chain, (1) 241-1314 connecting link and (1) 241-1714 offset link, jackshaft, see below

1шт.

30

113509A1

FRONT IDLER

IDLER - single roller, jackshaft drive chain

1шт.

31

1277726C1

ROLLER,48mm OD x 34mm L

- idler

1шт.

32

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat, 21/32 x 1-1/8 x 3/64 inch

1шт.

33

432-1216

COTTER PIN,3/16" x 1"

1шт.

569088R91

CHAIN (AG)

CHAIN - bulk, No. 2040, 10 foot roll

1шт.

1790D

CHAIN (AG)

CHAIN - bulk, 10 foot roll

1шт.
