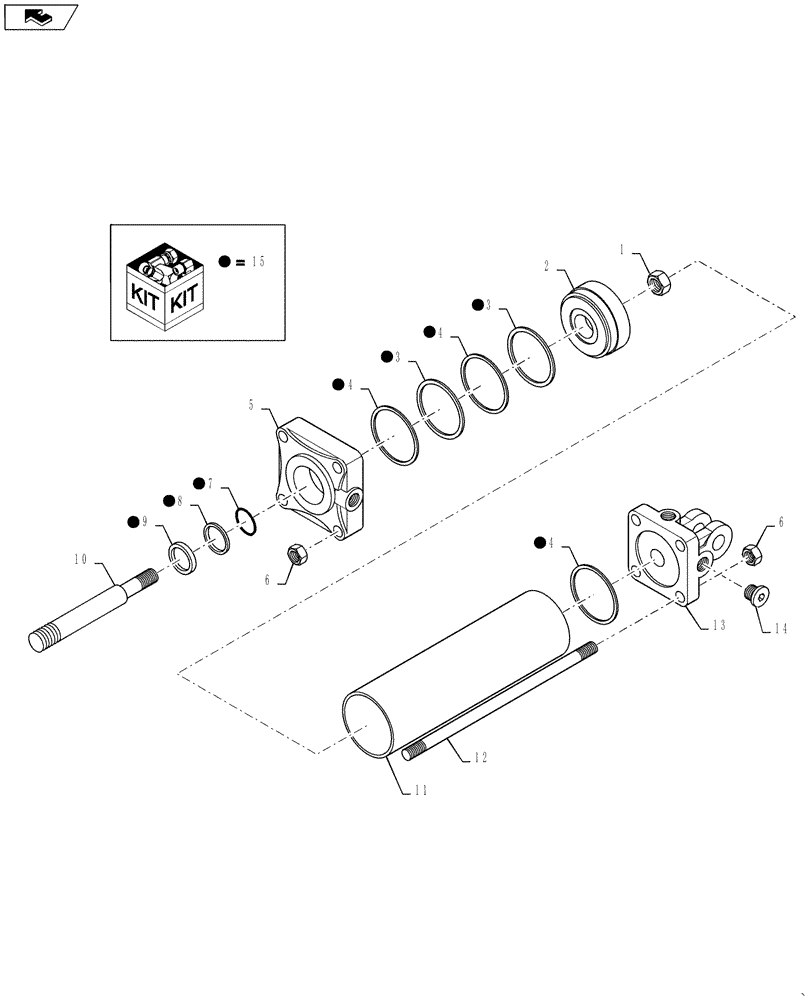

Запчасти Case IH 825 (35.746.AB[01]) - MARKER MIDWAY HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

1

86625064

NUT,Prev Torque, 3/8" - 16, Gr B

1шт.

2

73358789

PISTON

MW PISTON

1шт.

3

NSS

NOT SOLD SEPARAT

BACK-UP RING, Incl in 15

2шт.

4

NSS

NOT SOLD SEPARAT

O-RING, Incl in 15

3шт.

5

73358828

CYLINDER HEAD

MW HEAD

1шт.

6

25-166

NUT,3/8"-16, G5, Hvy

2шт.

7

NSS

NOT SOLD SEPARAT

O-RING, Incl in 15

1шт.

8

NSS

NOT SOLD SEPARAT

BACK UP RING, Incl in 15

1шт.

9

NSS

NOT SOLD SEPARAT

WIPER SEAL, Incl in 15

1шт.

10

73358827

ROD

MW ROD

1шт.

11

73358790

TUBE

MW TUBE

1шт.

12

73358833

TIE-ROD

MW TIE ROD

1шт.

13

73358832

CYLINDER HEAD

BASE MIDWAY

1шт.

14

73358826

PLUG

MW PLUG

1шт.

15

73357902

SEAL KIT

KIT, Incl 3 - 4, 7 - 9

1шт.
