(75.200.05) - OPENER HYDRAULIC CYLINDER

Запчасти Case IH 800 (75.200.05) - OPENER HYDRAULIC CYLINDER (75) - SOIL PREPARATION

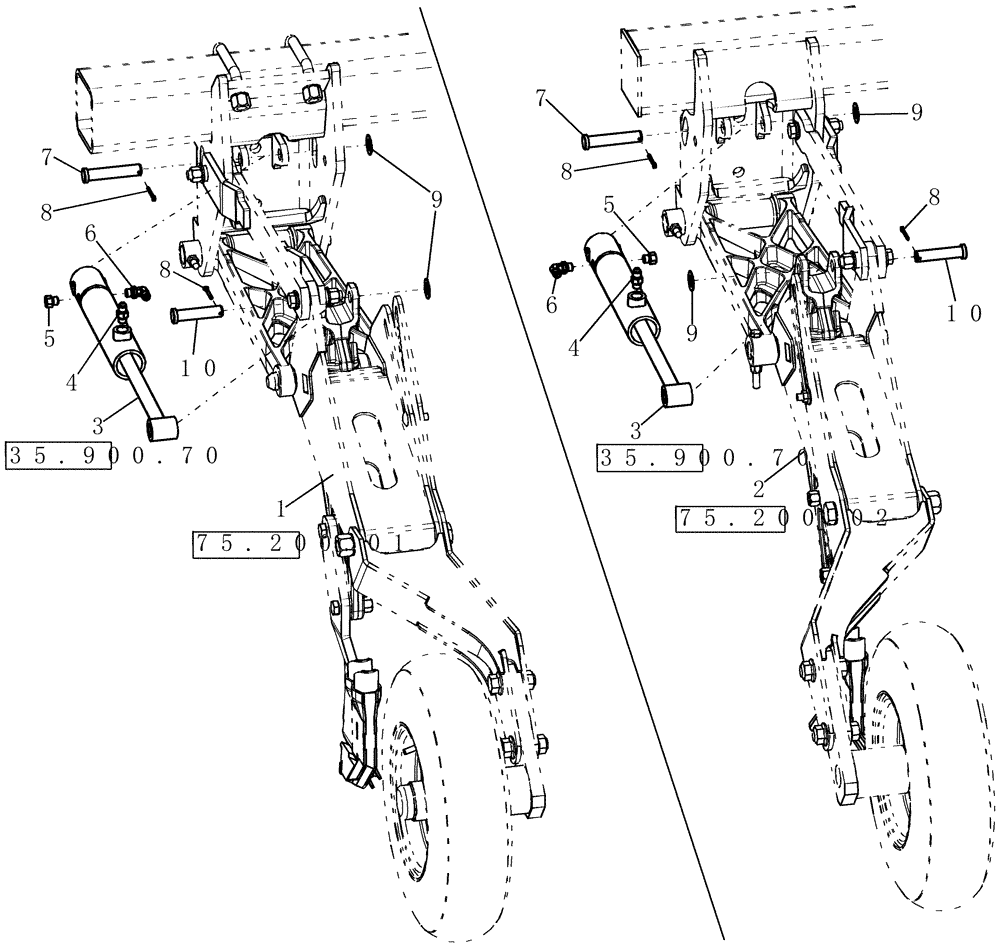

Схема запчастей Case IH 800 - (75.200.05) - OPENER HYDRAULIC CYLINDER (75) - SOIL PREPARATION
5
8
4
8
5
3
4
7
35.900.70
75.200.02
75.200.01
35.900.70
10
8
10
2
9
1
6
7
8
6
9
9
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87716199

OPENER

Tru Link LH

1шт.

Refer to 75.200.01

1шт.

2

87716203

OPENER

Tru Link RH

1шт.

Refer to 75.200.02

1шт.

3

87737800

HYDRAULIC CYLINDER,Double Acting, 25.4mm Rod, 162.05mm Stroke

1 1/2" x 5 1/2" inner

1шт.

Refer to 35.900.70

1шт.

87737800R

REMAN-HYD CYLINDER

800 (12/09-)

1шт.

87737800C

CORE-HYD CYLINDER

Return Number

1шт.

4

265235

HYD CONNECTOR,7/16" - 20 ORB x 7/16" - 20 JIC

1шт.

5

9672438

PLUG,7/16" - 20 ORB

1шт.

6

216773

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

1шт.

7

87699214

CLEVIS PIN

25.4 x 85.6

1шт.

8

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

2шт.

9

87325926

WASHER,0.62" ID x 1.12" OD x 0.05" Thk

5/8" id x 1 1/8" 18ga

2шт.

10

84224888

CLEVIS PIN

25.4 x 73.15

1шт.
